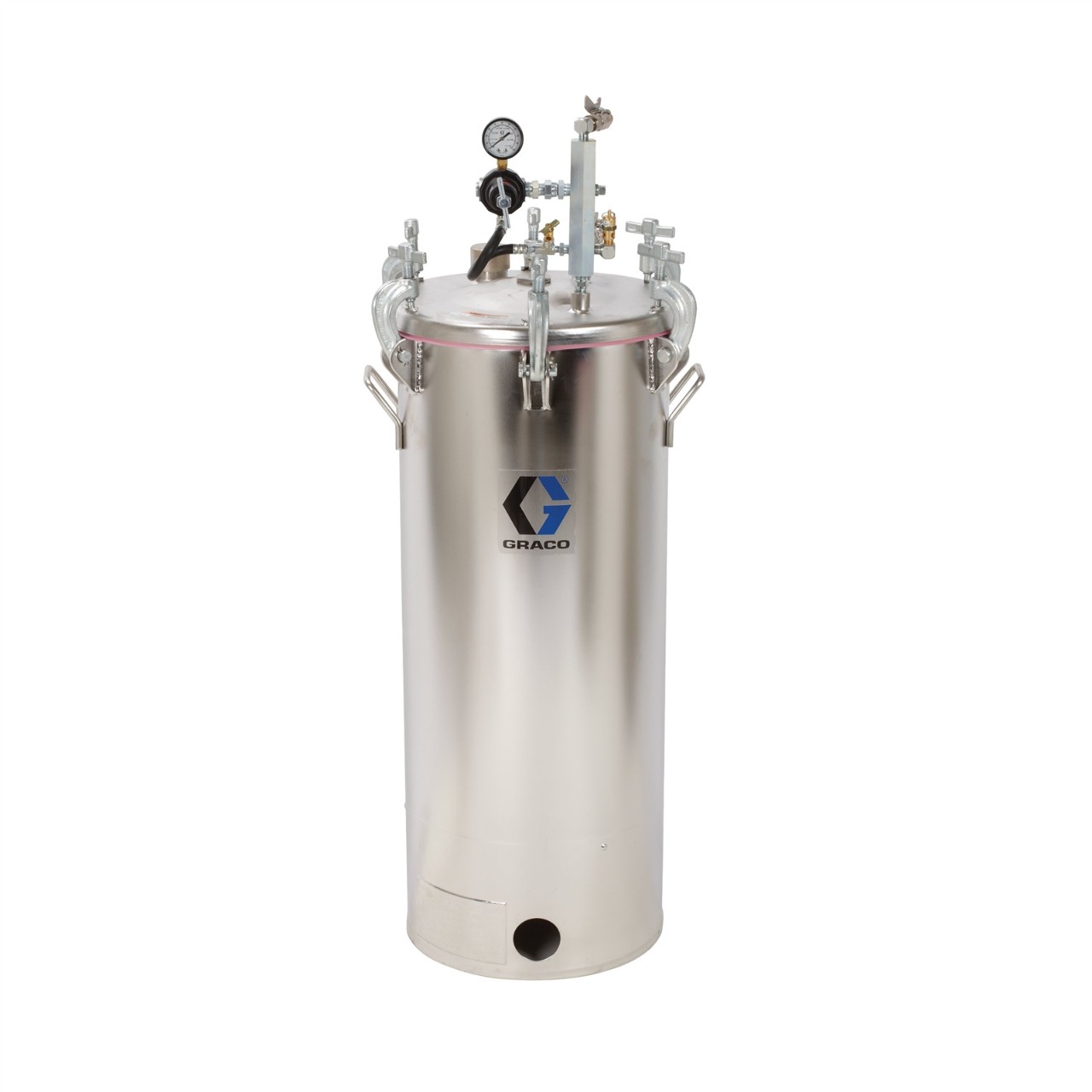

15 Gallon High Pressure (HVLP) Pot, Regulated to 100 psi, ASME Rated, 113.2 cm (44.6 in), 42 kg 92 lbs, SST
SKU: 236-151
$9,207.00$4,692.80(49% off)
Exclusive of GST. Shipping calculated at checkout.
In Stock
Details
Designed with electroplated surfaces that
prevent debris build-up and keep your
operation free of contaminants, Graco
pressure pots are precision welded and
surfaced.
Features
ASME rated to ensure it meets factory standards
High quality stainless steel design is compatible with many materials
Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir
Specifications
Inlet Size (in): 1/4
Inlet Thread Gender: Male
Inlet Thread Type: NPT
Maximum Volume Capacity (gal): 15
Maximum Working Pressure (MPa): 0.7
Maximum Working Pressure (psi): 100
Outlet Size (in): 3/8
Outlet Thread Gender: Male
Outlet Thread Type: NPSM
Overall Height (in): 44.57
Overall Width (in): 19
Type: Tank
Weight (lb): 92
Wetted Material: Stainless Steel, Santoprene, Polyamide, PET
Inlet Size (cm): 0.635
Inlet Size (in): 1/4
Inlet Size (mm): 6.35
Inlet Thread Gender: Male
Inlet Thread Type: NPT
Maximum Volume Capacity (l): 57
Maximum Working Pressure (MPa): 0.7
Maximum Working Pressure (bar): 7
Maximum Working Pressure (kPa): 700
Maximum Working Pressure (psi): 100
Outlet Size (cm): 0.9525
Outlet Size (in): 3/8
Outlet Size (mm): 9.525
Outlet Thread Gender: Male
Outlet Thread Type: NPSM
Overall Height (cm): 113.2
Overall Height (mm): 1132
Overall Width (cm): 48.3
Overall Width (mm): 483
Type: Tank
Weight (kg): 42
Wetted Material: Stainless Steel, Santoprene, Polyamide, PET
