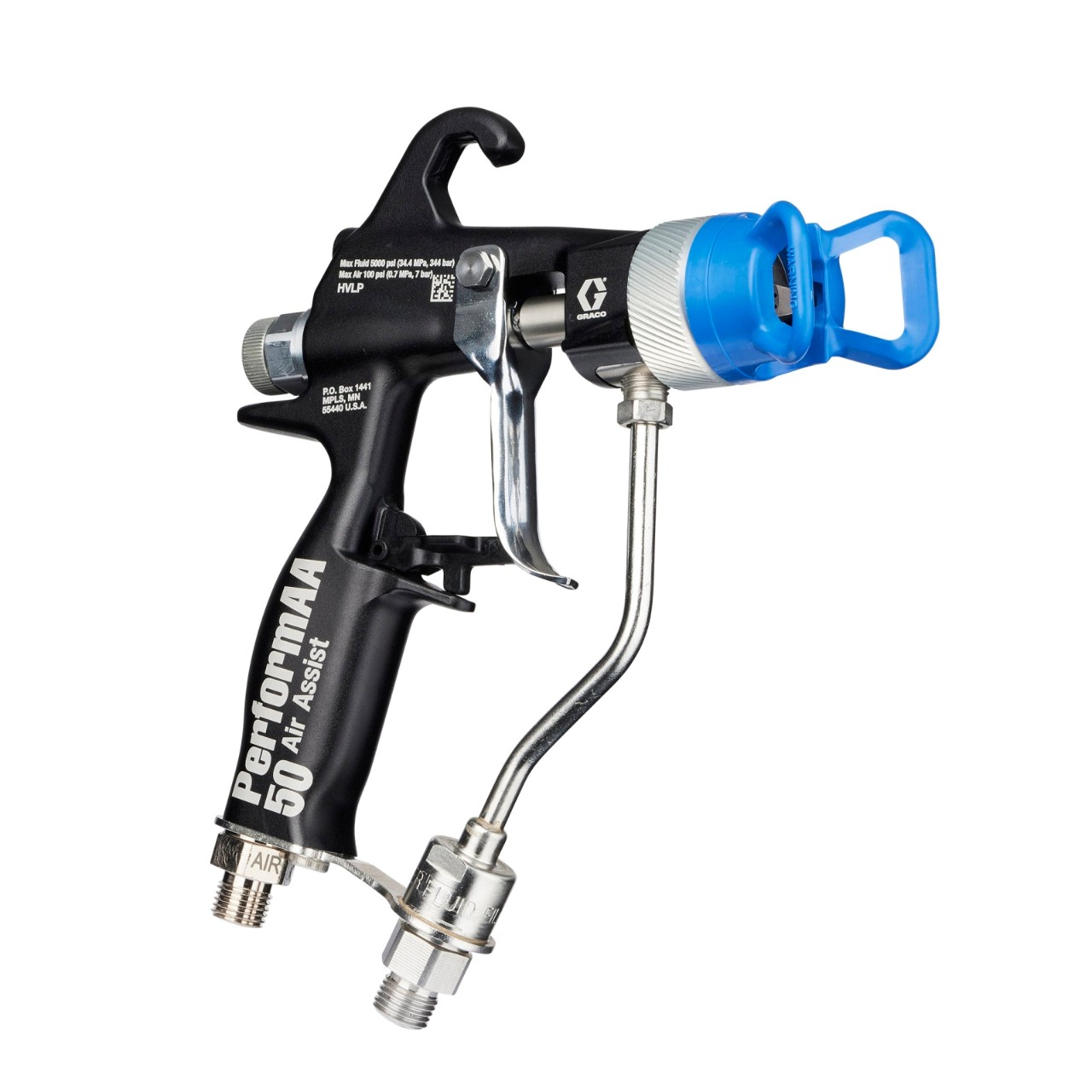

PerformAA 5000 Air Assist Gun with General Finishing air cap

SKU: 26B-510
$2,190.00 $1,408.70 (36% off)

Exclusive of GST. Shipping calculated at checkout.

In Stock

Details

Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimised balance, trigger pull and ergonomics.

Features

  • High quality 34.5 Mpa (5000 psi) air assist spray gun
  • General finishing air cap for a wide range of materials
  • Carbide fluid seat and carbide ball for durability
  • Fine finish, AXM, or pre-orifice, AXF, spray tip included as tip of choice
  • Clicking fan pattern adjustment knob for accurate adjustment

Specifications

  • Air Inlet Size (in): 1/4
  • Air Inlet Thread Gender: Male
  • Air Inlet Thread Type: NPSM
  • Applicator Type: Manual
  • Bleed Type: Non-Bleeder
  • Compatible Material: Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solvent-borne, Solvent-borne Paints, Urethane, UV Coating, Varnish
  • Compatible Spray Tip: AXM, AXF
  • Feed Type: Pressure Feed
  • Fluid Adjustment Knob: Clicking
  • Fluid Inlet Size (in): 1/4
  • Fluid Inlet Thread Gender: Male
  • Fluid Inlet Thread Type: NPSM
  • Gun Activation: Manual
  • Gun Included: 1
  • Gun Type: Air-Assisted Gun
  • Gun Weight (lb): 1
  • Gun Weight (oz): 16
  • Gun Weight with Tip and Guard (oz): 17.4
  • Gun Weight without Tip and Guard (oz): 16.2
  • Maximum Air Inlet Pressure (MPa): 0.7
  • Maximum Air Inlet Pressure (psi): 100
  • Maximum Air Pressure (MPa): 0.7
  • Maximum Air Pressure (psi): 100
  • Maximum Fluid Pressure (MPa): 34.5
  • Maximum Fluid Pressure (psi): 5000
  • Maximum Fluid Temperature (°F): 110
  • Model: PerformAA 50
  • Overall Height (in): 8.2
  • Overall Length (in): 6.8
  • Product Type: Spray Gun
  • Sound Power Level (dB(A)): 72.3
  • Sound Pressure Level (dB(A)): 62.6
  • Spray Pattern: Flat
  • Spray Type: Air-Assisted
  • Technology Type: N/A
  • Trigger Lock: Locking
  • Trigger Type: Two-Finger
  • Type: Spray Gun
  • Wetted Parts: Stainless Steel, Carbide, UHMWPE, Engineered Plastic, PTFE, Nylon, Fluoroelastomer
  • Air Inlet Size (cm): 0.635
  • Air Inlet Size (in): 1/4
  • Air Inlet Size (mm): 6.35
  • Air Inlet Thread Gender: Male
  • Air Inlet Thread Type: NPSM
  • Applicator Type: Manual
  • Bleed Type: Non-Bleeder
  • Compatible Material: Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solvent-borne, Solvent-borne Paints, Urethane, UV Coating, Varnish
  • Compatible Spray Tip: AXM, AXF
  • Feed Type: Pressure Feed
  • Fluid Adjustment Knob: Clicking
  • Fluid Inlet Size (cm): 0.635
  • Fluid Inlet Size (in): 1/4
  • Fluid Inlet Size (mm): 6.35
  • Fluid Inlet Thread Gender: Male
  • Fluid Inlet Thread Type: NPSM
  • Gun Activation: Manual
  • Gun Included: 1
  • Gun Type: Air-Assisted Gun
  • Gun Weight (g): 453
  • Gun Weight (kg): 0.45
  • Gun Weight (oz): 16
  • Gun Weight with Tip and Guard (g): 490
  • Gun Weight with Tip and Guard (oz): 17.4
  • Gun Weight without Tip and Guard (g): 460
  • Gun Weight without Tip and Guard (oz): 16.2
  • Maximum Air Inlet Pressure (MPa): 0.7
  • Maximum Air Inlet Pressure (bar): 7
  • Maximum Air Inlet Pressure (kPa): 700
  • Maximum Air Inlet Pressure (psi): 100
  • Maximum Air Pressure (MPa): 0.7
  • Maximum Air Pressure (bar): 7
  • Maximum Air Pressure (kPa): 700
  • Maximum Air Pressure (psi): 100
  • Maximum Fluid Pressure (MPa): 34.5
  • Maximum Fluid Pressure (bar): 345
  • Maximum Fluid Pressure (kPa): 34500
  • Maximum Fluid Pressure (psi): 5000
  • Maximum Fluid Temperature (°C): 43
  • Model: PerformAA 50
  • Overall Height (cm): 20.8
  • Overall Height (mm): 208
  • Overall Length (cm): 17.25
  • Overall Length (mm): 173
  • Product Type: Spray Gun
  • Sound Power Level (dB(A)): 72.3
  • Sound Pressure Level (dB(A)): 62.6
  • Spray Pattern: Flat
  • Spray Type: Air-Assisted
  • Technology Type: N/A
  • Trigger Lock: Locking
  • Trigger Type: Two-Finger
  • Type: Spray Gun
  • Wetted Parts: Stainless Steel, Carbide, UHMWPE, Engineered Plastic, PTFE, Nylon, Fluoroelastomer
