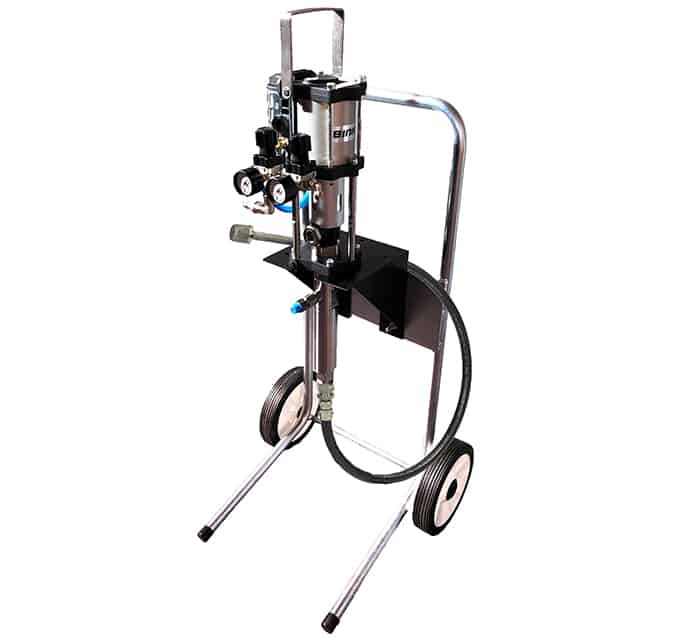

Binks MXL 32:1 Air Assisted Airless Pump

SKU: MXL432PU-CG-ACG

Exclusive of GST. Shipping calculated at checkout.

Details

Smooth performance. Reliable results. Built for professional finishing.



Choice of cart mount or wall mount, gravity or suction fed.

The Binks MXL 32:1 Air Assisted Airless Pump combines precision engineering with proven performance to deliver an exceptional spray finish across a wide range of coatings. Designed for professionals who expect consistency and reliability, this setup is all about spraying smarter — not harder.

Whether you’re applying solvent-based or waterborne materials, the MXL provides the control, efficiency and longevity you need for everyday production work.

  • Smooth, consistent spray pattern thanks to patented air valve technology that changes over cleanly, reducing pulsation.

  • Built to last – the ceramic coated piston rod lasts up to three times longer than traditional hard chrome.

  • Low maintenance – fixed spring-tension packings and a modular design mean fewer parts and easier servicing.

  • Durable materials – all wetted parts are stainless steel with tungsten carbide valve seats for a long working life.

  • Professional finish – the Binks Trophy AA4400 spray gun delivers fine atomisation and excellent control.



Package Includes:

  • Binks MXL 32:1 Air Assisted Airless Pump

  • Choice of cart mount or wall mount, gravity or suction fed

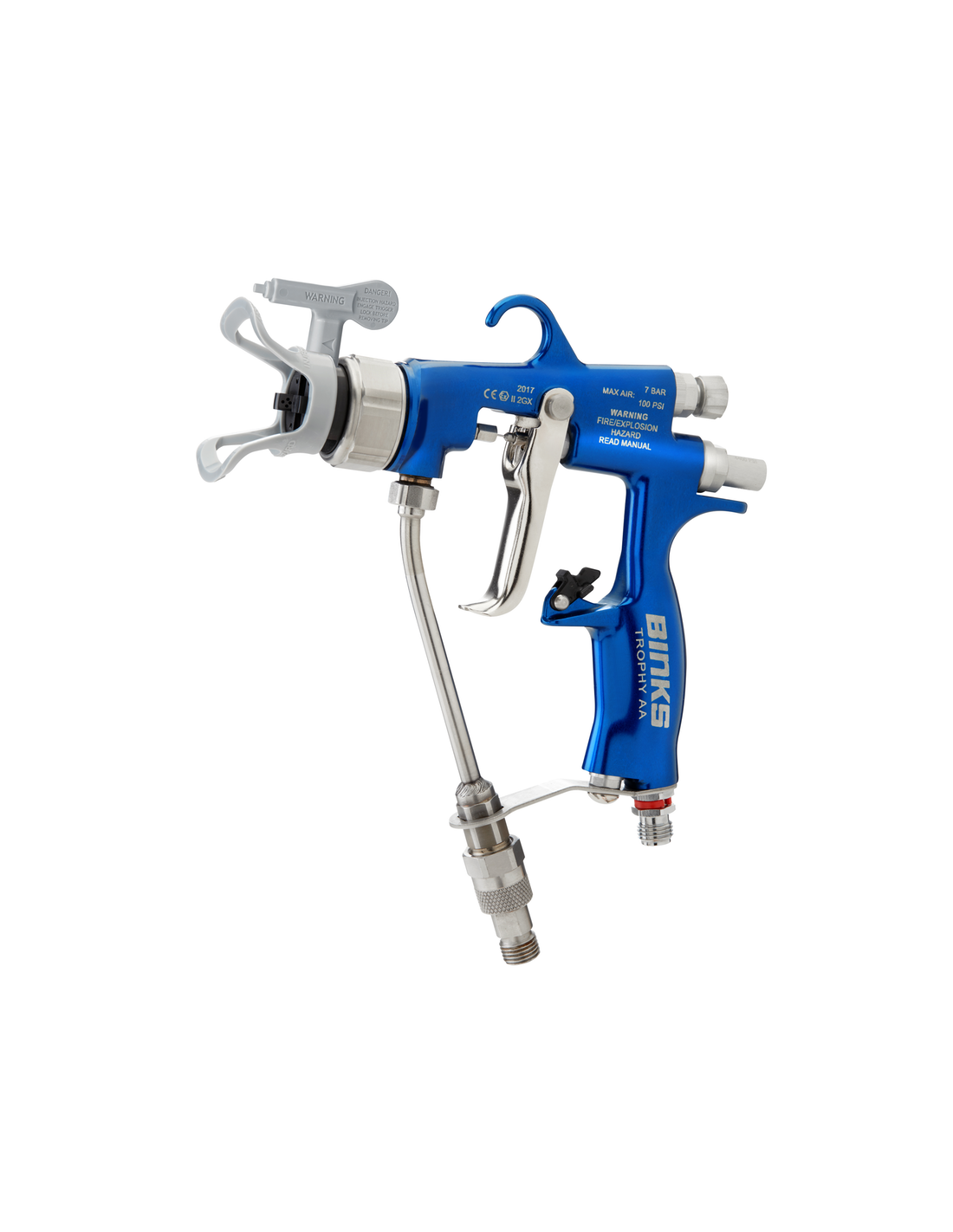

  • Binks Trophy AA4400 spray gun with LVMP air cap (tip size specified at order)

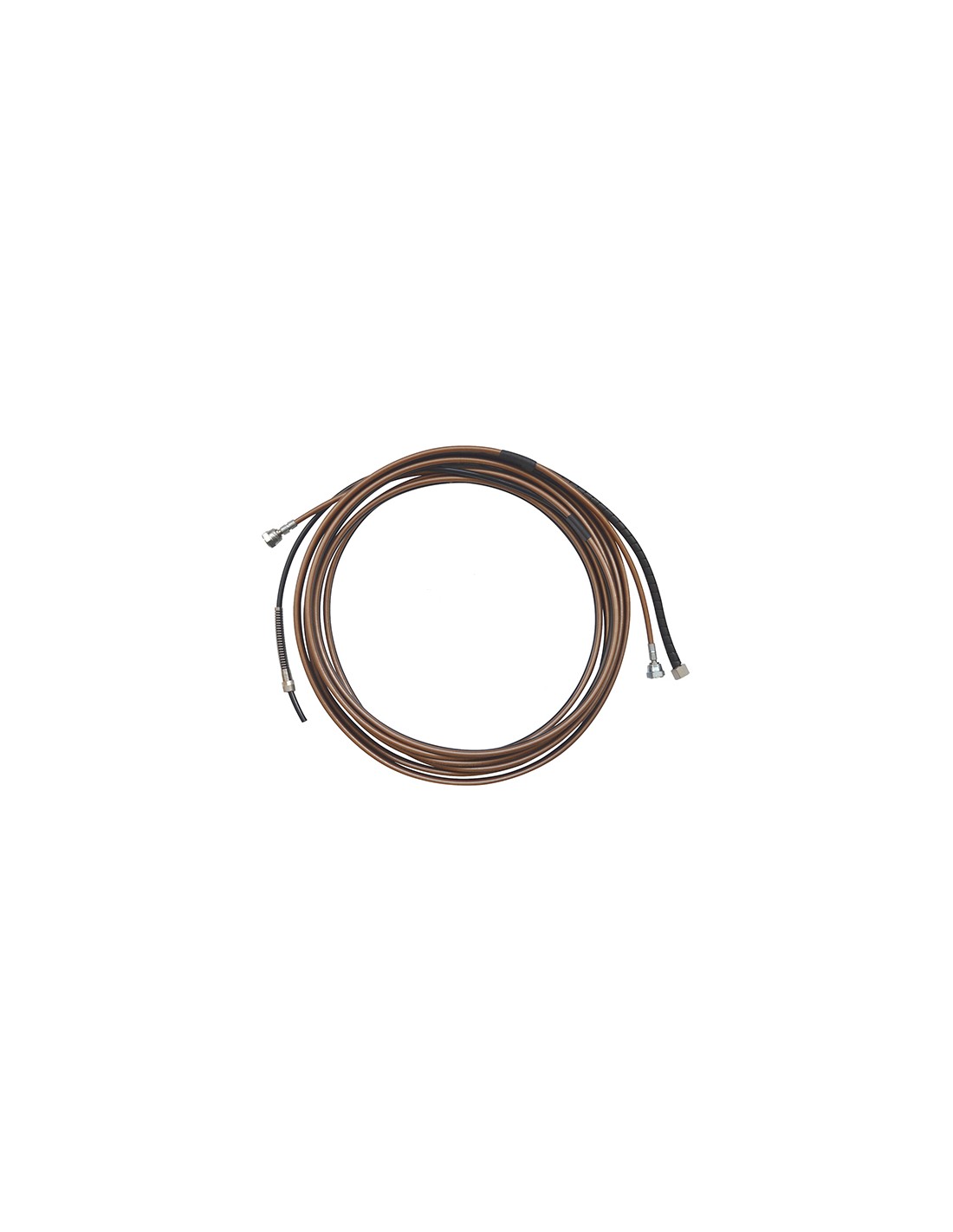

  • 7.5m Binks SuperFlex air and fluid hoses

  • Air and pump fluid controls

  • 5-year limited warranty



Ideal for spraying:

  • Wood stains, lacquers and varnishes

  • Primers, sealers and catalysed lacquers

  • Enamels and polyurethanes

  • Solvent or waterborne coatings

  • Sealers and undercoats



Binks MX Pump Brochure

Features

  • Modular construction means reduced number of parts for easy and fast maintenance.
  • All wetted parts are Stainless Steel Ideal for use with solvent and water based paints/materials.
  • Fixed, spring tension packings Lower maintenance and reduced running costs.
  • All valve seats are Tungsten Carbide Long durable working life.
  • Ceramic coated piston Extra wear resistance, longer packing life.
  • Pump packings PTFE/UHMWPE

Specifications

  • Ratio: 32:1
  • Max inlet pressure: 116 psi
  • Flow rate nominal: 1.4 L/min
  • Flow rate max: 4.0 L/min
  • Volume/Cycle: 24cm²
  • Max Pressure: 3600 psi
  • Cylinder Diameter: 85mm
  • Piston Stroke: 75mm
  • Air consumption: 147 L/min
