Graco Stellair Manual Conventional Air Spray Gun

$773.72

Exclusive of GST. Shipping calculated at checkout.

Details

PRESSURE FEED AIR SPRAY GUNS
All-Star Ergonomics, Serviceability and Performance for Industrial Liquid Finishing

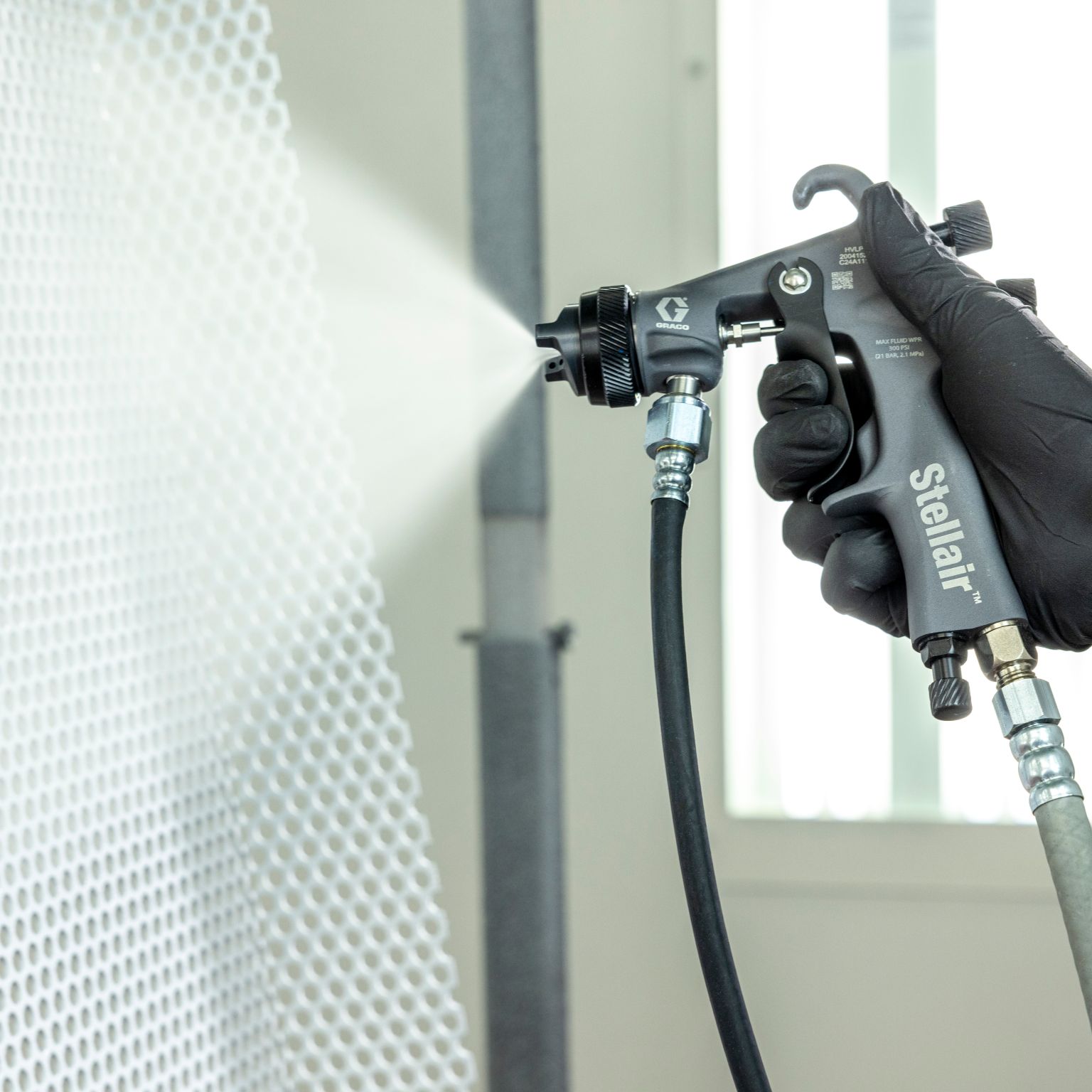

The Graco Stellair pressure feed air spray gun delivers the all-star ergonomics, performance and serviceability that industrial painters need to produce stellar results.



Graco Stellair and ACE brochure

Features

Class-A Finish Quality
Delivers a premium, automotive-grade finish using a conventional air spray method for flawless results.

Superior Spray Control
The general industry air cap produces a smooth, uniform spray pattern at low atomising pressure, helping reduce overspray and air cap build-up.

Durable PEEK Needle Tip
Built with a high-performance polyetheretherketone (PEEK) needle tip, designed to withstand heavy use and extend service life.

Ergonomic Design
Crafted for all-day comfort, with a balanced gun body, contoured handle, and finger rests that fit perfectly in any painter’s hand.

Fast, Hassle-Free Maintenance
A single-piece fluid cartridge can be removed and replaced in seconds, minimising downtime and keeping you spraying longer.

Efficient Cleaning & Lower VOCs
Featuring a direct stainless steel fluid path, the gun requires minimal solvent to flush, reducing waste and cutting VOC emissions.

Specifications

Model: Stellair
Series: Manual
Product Type: Spray Gun
Technology Type: Conventional Air Spray
Applicator Type: Manual
Application: General Industry
Spray Type: Air Spray
Feed Type: Pressure Feed
Gun Activation: Manual
Trigger Type: Two-Finger
Trigger Lock: Non-Locking


Dimensions & Connections

  • Air Inlet Size: 6.35 mm (¼”)

  • Air Inlet Thread Type: NPSM

  • Fluid Inlet Size: 9.52 mm (⅜”)

  • Fluid Inlet Thread Type: NPSM

  • Fluid Orifice Size: 1.4 mm


Performance

  • Maximum Air Pressure: 0.7 MPa (7 bar)

  • Maximum Fluid Pressure: 2.1 MPa (21 bar)


Materials & Compatibility

  • Needle Tip Material: PEEK (Polyetheretherketone)

  • Compatible Materials: CARC, Enamel, Epoxy, Latex, Plural-Component, Sealants, Solvent-borne, Urethane, Water-borne


Included Components

  • Air Cap

  • Needle Assembly

  • Nozzle
