  • Graco King Sprayer 70:1 Package - K70FH1 (K70-FH1)

GRACO 70:1 Heavy Duty King Airless Sprayer, Max Life Filter K70MH2

SKU: K70-MH2
Please contact us for pricing

Exclusive of GST. Shipping calculated at checkout.

Details

Graco King  – Built for Demanding Protective Coatings

For serious output and maximum performance, the Graco King Series is your go-to solution for high-volume, high-pressure spraying.

The Graco King 70:1 delivers unmatched power and flow for heavy-duty protective coatings – ideal for industrial and infrastructure projects across New Zealand.

What’s included (K70MH2 Package):

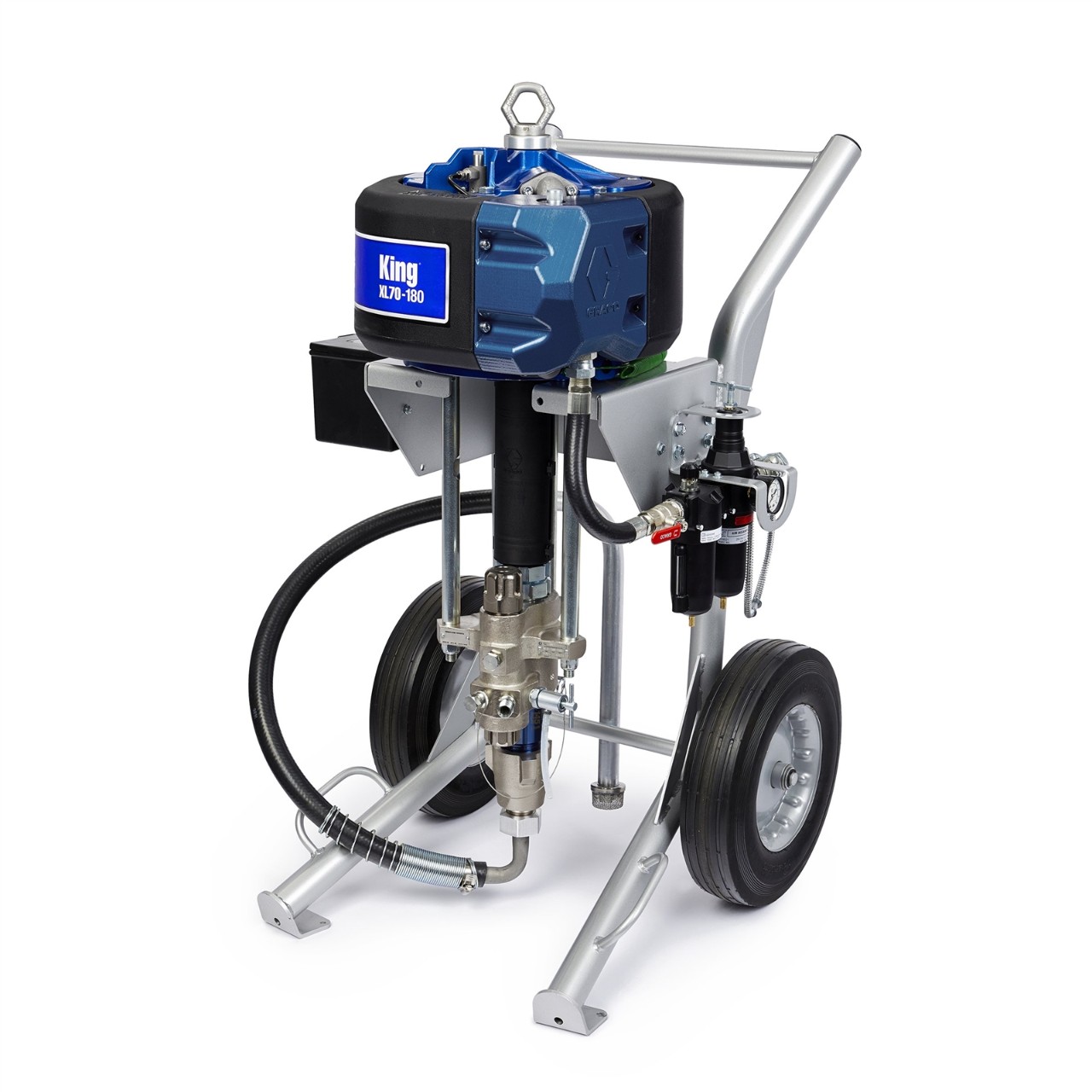

  • XL70-180 Airless Sprayer with 10” XL6500 Air Motor

  • Cart mount with 5-gallon (18.9 L) siphon set

  • Pressure-rated XTR+ spray gun

  • 3/8 in x 50 ft (15.2 m) main hose + 1/4 in x 6 ft (1.8 m) whip hose

  • XHD 519 SwitchTip, tip guard, and fittings

Performance:

  • Max Pressure: 7250 psi (500 bar)

  • Flow Rate: 11 L/min (2.9 gpm)

  • Delivers 20% higher pressure and 80% more flow than older XL3400 models



Perfect for contractors needing reliable, consistent spray performance with thick coatings in tough conditions.

Contact us to talk through your requirements and find the right setup.

GRACO KING AIRLESS BROCHURE

Features

  • Simple maintenance – This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy. All motor parts are easily accessible and require simple maintenance.



  • Improved icing performance – Thermally isolated poppets are mounted separately and insulated from motor castings that can often drop below freezing. The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop. The icing potential has been reduced by up to 70%.



  • Less pulsation – with more than 145% higher exhaust capacity in the air valve, you’ll achieve a faster, smoother changeover. Eliminating the “wink” in your pattern – it is a difference you will feel.



  • Improved sealing and strength with the improved edge loading and seven throat pickings instead of five. The new MaxLife pump Lowers are designed for the most demanding jobs, providing unmatched durability and life.



  • Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.



  • Exposed Thermally Isolated Poppets

  • De-Icing Valve

  • Tool Box

  • Trusted XL Motor

  • Protective Rod Guard

  • Robust Air Controls

  • Xtreme Lowers

  • Improved Siphon Hose

  • Cart with Wheels

Specifications

  • Model: King

  • Type: Airless Sprayer

  • Product Type: Single Leg

  • Power Source: Air (Pneumatic Piston Pump)

  • Control Type: Fixed Ratio

  • Convertible: Non-Convertible

  • Pump Mount Type: Heavy-Duty Cart

  • Frame Configuration: Heavy-Duty Cart

  • Pump Type: Pneumatic Piston

  • Motor Type: XL High Performance

  • Package Pressure Ratio (Motor/Lower): 70:1 XL6500 / 180cc

  • Pump Rod Type: MaxLife

  • Lower Type: MaxLife with Filter

  • Gun Model: XTR-7

  • Number of Guns: 1

  • Includes: Pump, Lower, Motor, MaxLife with Filter, Heavy Duty Cart, Air Controls, Siphon Kit, Hose, Gun, Lubricator

  • Package Options: Air Controls, Siphon Kit, Hose, Gun, Lubricator

  • Compatible Materials: Protective Coatings, Paints, Primers

  • Material Applications: Paints, Primers

Pressure Ratings

  • Maximum Working Pressure: 50 MPa / 500 bar / 7250 psi

  • Maximum Air Pressure: 7 bar / 700 kPa / 100 psi

Connections

  • Air Inlet Size: 25.4 mm (1″)

  • Air Inlet Thread: NPT Female

  • Fluid Inlet Size: 31.75 mm (1-1/4″) NPT Male

  • Fluid Outlet Size: 12.7 mm (1/2″) NPT Female

Performance

  • Maximum Tip Size: Variable

  • Maximum Sound Pressure Level: 81.5 dB(A)

Construction

  • Wetted Materials: Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather

  • Weight: 95 kg

Certifications

  • Standards Met: CE, FM Approved, FMc, Ex

  • Approved for Hazardous Locations: Yes
