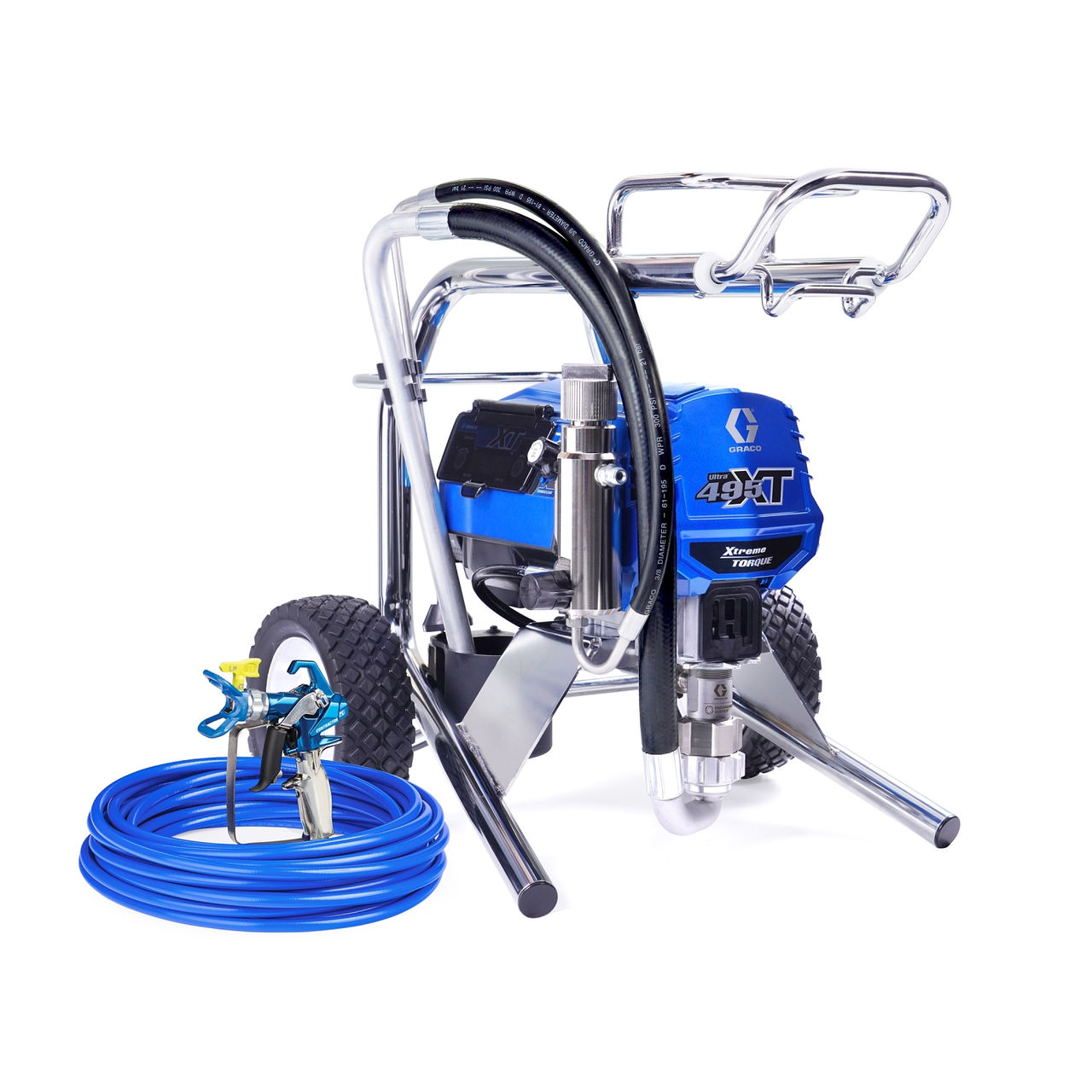

Graco Ultra 495 XT Electric Airless Sprayer Lo-Boy 19D534

SKU: 19D-534
$6,279.00 $5,183.00 (17% off)

Exclusive of GST. Shipping calculated at checkout.

In Stock

Details

A 25.4 kg compact sprayer with 1.7 HP motor, a wide operating pressure range (50–3,300 psi), TurboClean fast flush and selectable spray modes for high productivity.

  • Industry-leading pressure response and flow (~3 L/min)

  • 3× longer pump life, 6× faster cleaning

  • Includes gun, hose & RAC X LP 517 tip



  • 1.7 HP Xtreme Torque Motor – More power, less noise, longer life

  • Wide Pressure Range (3.5–227 bar) – Rapid-Response control for perfect results

  • Dual Spray Modes – Low-Pressure and High-Pressure at your fingertip

  • Long-Life Endurance Vortex Pump – Lasts up to 3× longer; fast ProConnect swap

  • TurboClean Flush – 6× faster cleaning with 50% less water

  • WatchDog Protection – Automatic pump shutdown when fluid is low

  • Low-Clog Easy-Out Filter – Keeps maintenance simple

  • Bright LED Display – Readable in all site conditions

  • Lo-Boy Cart (25.4 kg) – Compact design with high output

  • Complete Pack – Contractor PC Gun, BlueMax II Hose, RAC X LP 517 Tip included



Graco Brochure Ultra XT Range

Features

Xtreme Torque Motor Technology

  • 15x more torque than traditional motors for demanding jobs

  • 8x more magnets deliver powerful, consistent performance

  • 90% lower running speeds extend motor life

  • Runs up to 10x quieter – ideal for indoor or residential sites

Rapid-Response Control

  • Instant pressure adjustments for a consistently smooth finish

  • Maintains top performance across a wide tip size range

  • Massive pressure range: 50–3,300 psi – suits everything from primers to heavy coatings

Selectable Spray Modes

  • Low Pressure Mode (50–2,000 psi) for precision and reduced overspray

  • High Pressure Mode (500–3,300 psi) for maximum performance when you need it

LED Digital Display

  • Easy-to-read screen – even in bright daylight or dusty conditions

Endurance Vortex Piston Pump with ProConnect

  • Vortex Rod lasts up to 3x longer than standard pumps

  • Quick pump changes on site with ProConnect – no tools needed

TurboClean System

  • Clean your pump 6x faster using half the water

  • Designed for fast cleanup between jobs

WatchDog Pump Protection

  • Automatically shuts off the pump when paint runs low – helps prevent dry running

Durable Filtration

  • Easy Out Filter reduces tip clogs and makes cleaning simple

Lightweight & Portable

  • Weighs just 25.4 kg – easy to lift, load and transport

Complete Kit Included

  • Comes ready to go with Contractor PC Spray Gun, RAC X LP 517 SwitchTip, and hose

Specifications

  • Model: Ultra
  • Series: XT
  • Type: Airless Sprayer



Max Tip Size 0.027″
Max Flow Rate 3.0 LPM
Max Pressute 3300PSI
