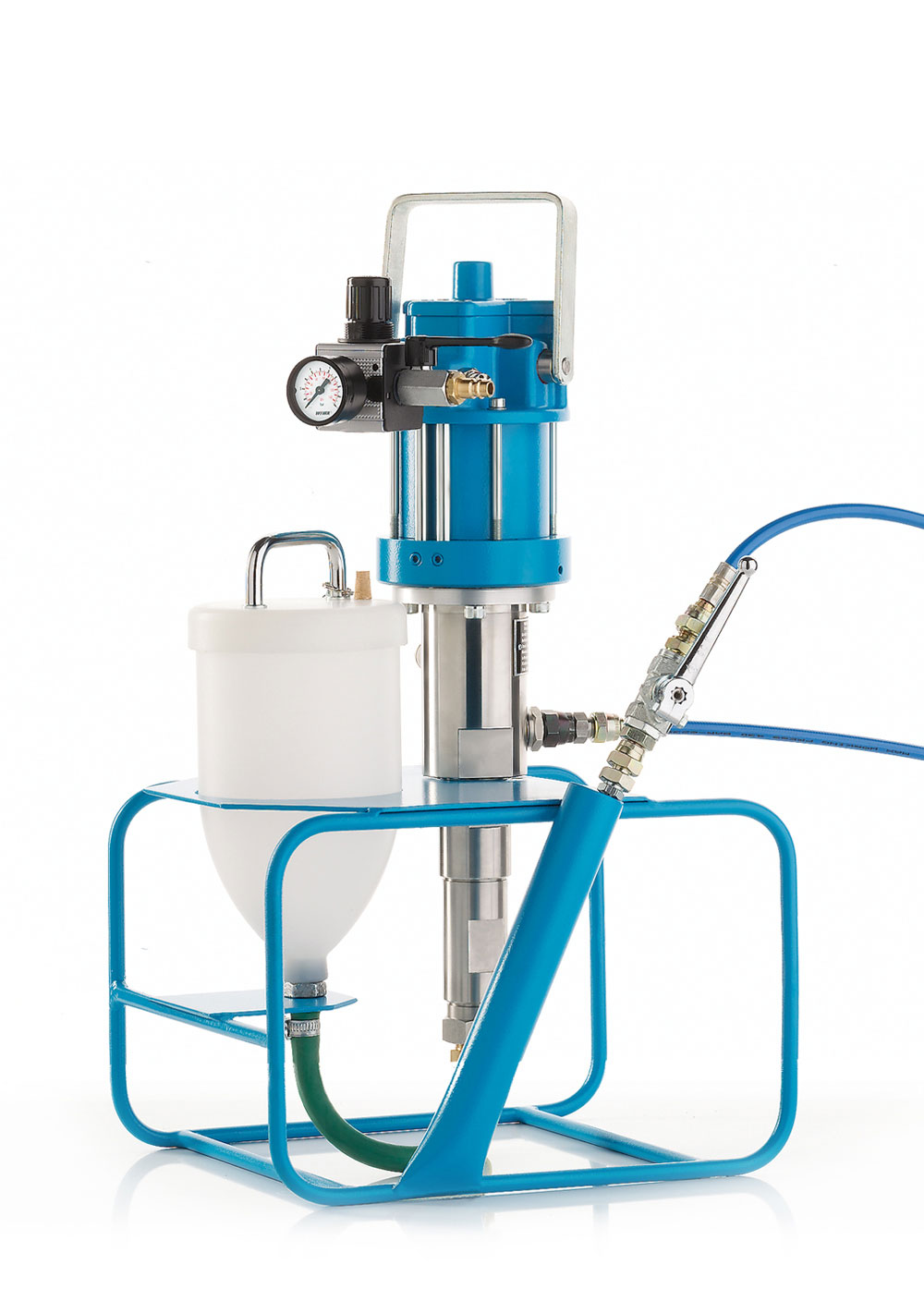

The Wiwa Inject HD 1 pumps are compact, portable pumps made in Germany for crack injection and pressure grouting with epoxy and polyurethane resins.
Built tough with reinforced housings and durable components, they deliver safe, reliable performance and long service life for concrete repair, protective coatings and fine finishing work.
Compact, portable 1K injection pump for epoxy and polyurethane resins
Delivers up to 264 bar (3,829 psi) with 33:1 pressure ratio
Supplied complete with 7.5 m high-pressure hose and injection lance
Adjustable injection pressure with automatic stop when injection is complete
Built with German engineering for long service life and reliable performance
Pressure Ratio: 33 : 1
Max. Operating Pressure: 264 bar / 3,829 psi
Max. Inlet Air Pressure: 8 bar / 116 psi
Output per Cycle: 14 ccm (0.5 fl. oz.)
Hopper Capacity: 1.5 litres (≈ 3 pints)
Included Accessories: 7.5 m high-pressure injection hose and injection lance with coupling
Gross Weight: ≈ 8 kg
Compatible Materials: Low-viscosity epoxy and polyurethane resins, injection foam, combi foams, and longer pot-life materials
Special Features: Infinitely adjustable injection pressure; pneumatic drive for compact, portable use; automatic stop when injection complete (reduces wear and prevents overheating/resin deterioration).
