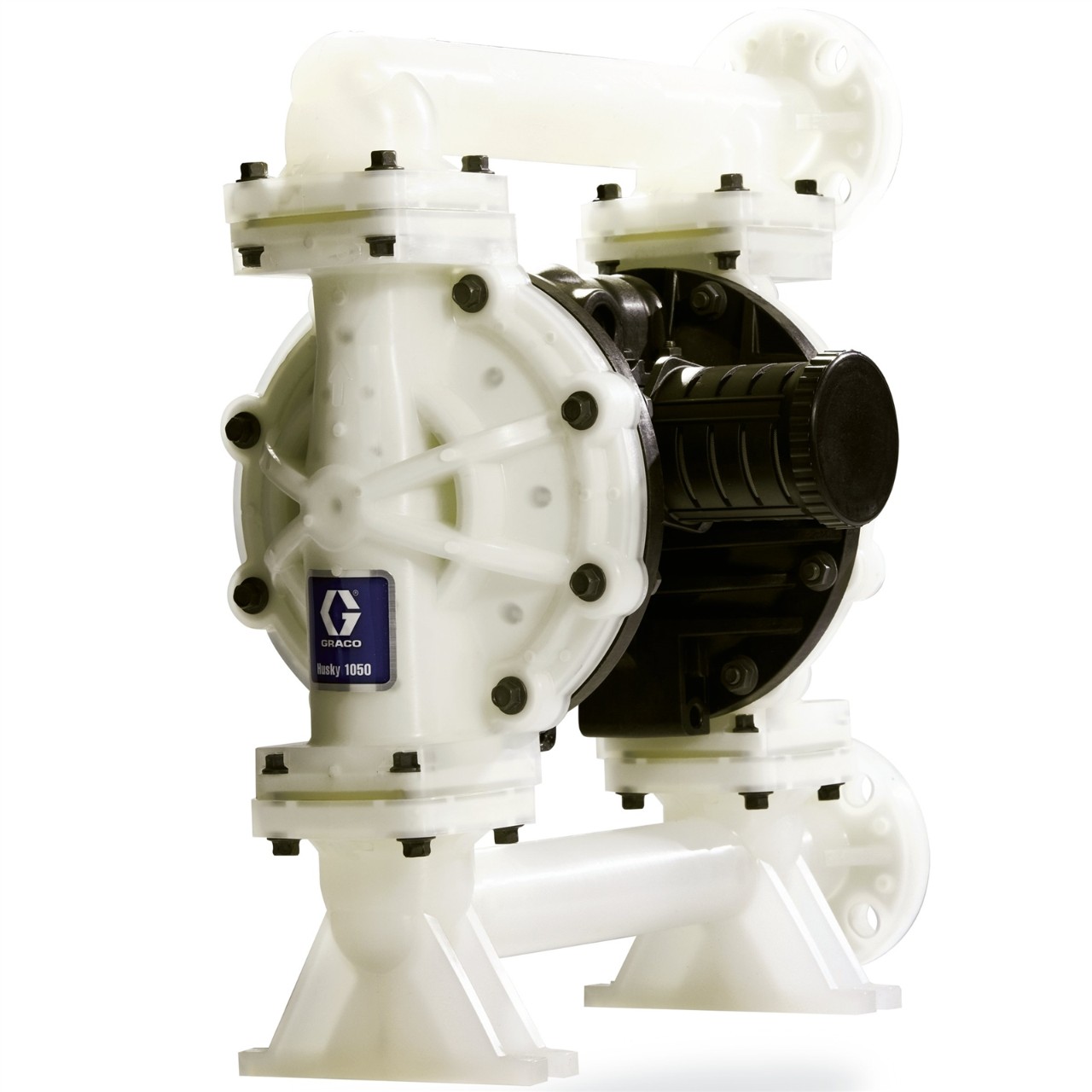

Graco Husky 1050 PP (NPT) Pump, End Flange, PP Centre Section, PP Seats, PTFE Balls & PTFE Diaphragm

SKU: 649-034
$2,592.62

Exclusive of GST. Shipping calculated at checkout.

In Stock

Details

The Graco Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece centre section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

Reliable and efficient, the Graco Husky 1050 Series Pneumatic Diaphragm Pump is designed for industrial applications requiring consistent performance and chemical compatibility. Constructed with durable polypropylene and PTFE/EPDM components, it delivers a high flow rate with minimal maintenance.



  • Industrial-Grade Construction – Polypropylene fluid section, centre section, and PTFE/EPDM diaphragms for excellent chemical resistance.
  • Versatile Fluid Handling – Suitable for antifreeze, detergents, motor oil, hydraulic fluid, cutting oil, and wastewater transfer.
  • High Flow Capacity – Pumps up to 189 l/min with a maximum cycle rate of 280 cpm.
  • Durable & Efficient – Handles solids up to 3.2 mm and operates reliably under demanding conditions.
  • Air-Powered Operation – Ideal for hazardous or remote environments where electricity is not available.



Graco Process Equipment Brochure

Features

  • Longer Diaphragm Life – Up to 5x longer diaphragm life, reducing maintenance and downtime.

  • Modular Air Valve – Stall-free, low-pulsation operation for smooth, rapid changeover.

  • One-Piece Centre Section – Eliminates air leaks for more efficient operation.

  • Four-Bolt Joint Design – Even sealing pressure for reliable, leak-free performance.

  • Multiple Ports – Flexible installation options with an increased number of ports.

  • Optional Features:

    • DataTrak™ – Run-away protection and tracks material usage.

    • Pulse Output – Cycle count capability for process monitoring.

  • Serviceable Pilot Valves – Spring-loaded and externally serviceable for faster changeover and reduced pulsation.

  • High Efficiency – Up to 30% more efficient than the market leader.

  • Improved Flow Rate20% increase in fluid flow compared to the Husky 1040.

Specifications

Air Exhaust Port 19 mm (3/4 in) NPT (Female)
Air Inlet 12.7 mm (1/2 in) NPT (Female)
Fluid Inlet / Outlet Size 25.4 mm (1 in)
Maximum Flow Rate 189 l/min
Maximum Air Pressure 0.86 MPa / 8.6 bar / 860 kPa
Maximum Fluid Pressure 0.86 MPa / 8.6 bar / 860 kPa
Maximum Operating Temperature 66 °C
Maximum Solid Size 3.2 mm
Maximum Cycle Rate 280 cpm
Weight 8.2 kg
Overall Height 452 mm
Wetted Materials Polypropylene, PTFE/EPDM
Seat Material Polypropylene
Manifold Configuration End Port
Connection Type End Flange ANSI/DIN
Power Source Air
Standards Met CE
