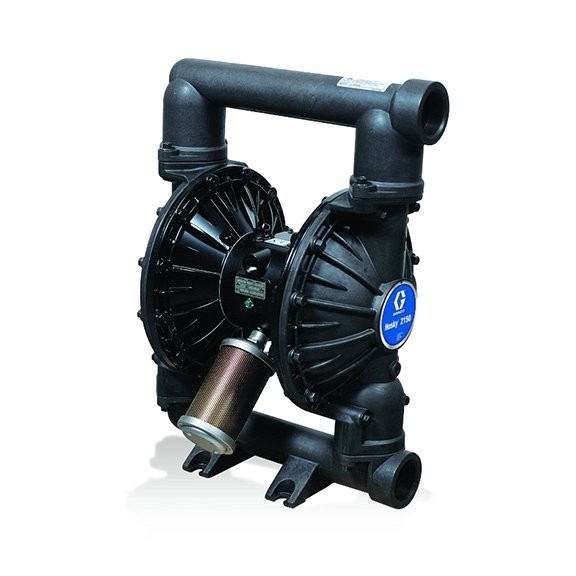

Graco Husky 2150 Air Operated Pneumatic Diaphragm Pump

SKU: DF3-311

Exclusive of GST. Shipping calculated at checkout.

Details

The Graco Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve, which provides a smooth and rapid changeover.



AL 51 mm (2 in.) NPT Standard Pump, AL Centre Section, SS Seats, PTFE Balls & PTFE Diaphragm

Features

  • Overall improved efficiency (up to 40% more efficient)
  • Highest fluid flow rate in its class
  • Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
  • Expanded material offering to handle endless applications
  • Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without un-installing the diaphragm pump
  • 51 mm (2 in.) ANSI end-porting
  • Fluid flow up to 568 lpm (150 gpm)
  • Fluid pressure to 8.4 bar (0.84 MPa, 120 psi)
  • Lube-free operation
  • Epoxy-coated air section for tough environmental conditions.



Husky 2150 Pneumatic Diaphragm Pump

  • Application: Industrial

  • Power Source: Air

  • Type: Pneumatic Diaphragm Pump

  • Series: 2150

  • Model: Husky

  • Standards Met: ATEX, CE

Specifications

Performance

  • Maximum Air Pressure: 0.8 MPa / 8 bar / 800 kPa

  • Maximum Fluid Pressure: 0.8 MPa / 8 bar / 800 kPa

  • Maximum Flow Rate: 568 l/min

  • Maximum Cycle Rate: 145 cpm

  • Maximum Operating Temperature: 82 °C

  • Maximum Solid Size: 6.35 mm


Connections

  • Fluid Inlet Size: 50.8 mm (2″)

  • Fluid Outlet Size: 50.8 mm (2″)

  • Connection Type: Threaded

  • Thread Type: NPT

  • Thread Gender: Female


Materials

  • Material / Wetted Material: Aluminium, Stainless Steel, PTFE/EPDM

  • Ball Material: PTFE

  • Seat Material: Stainless Steel

  • Diaphragm Material: PTFE/EPDM 2-Piece

  • Diaphragm Compatible Material: PTFE

  • Centre Section Material: Aluminium

  • Manifold O-Ring Material: PTFE
