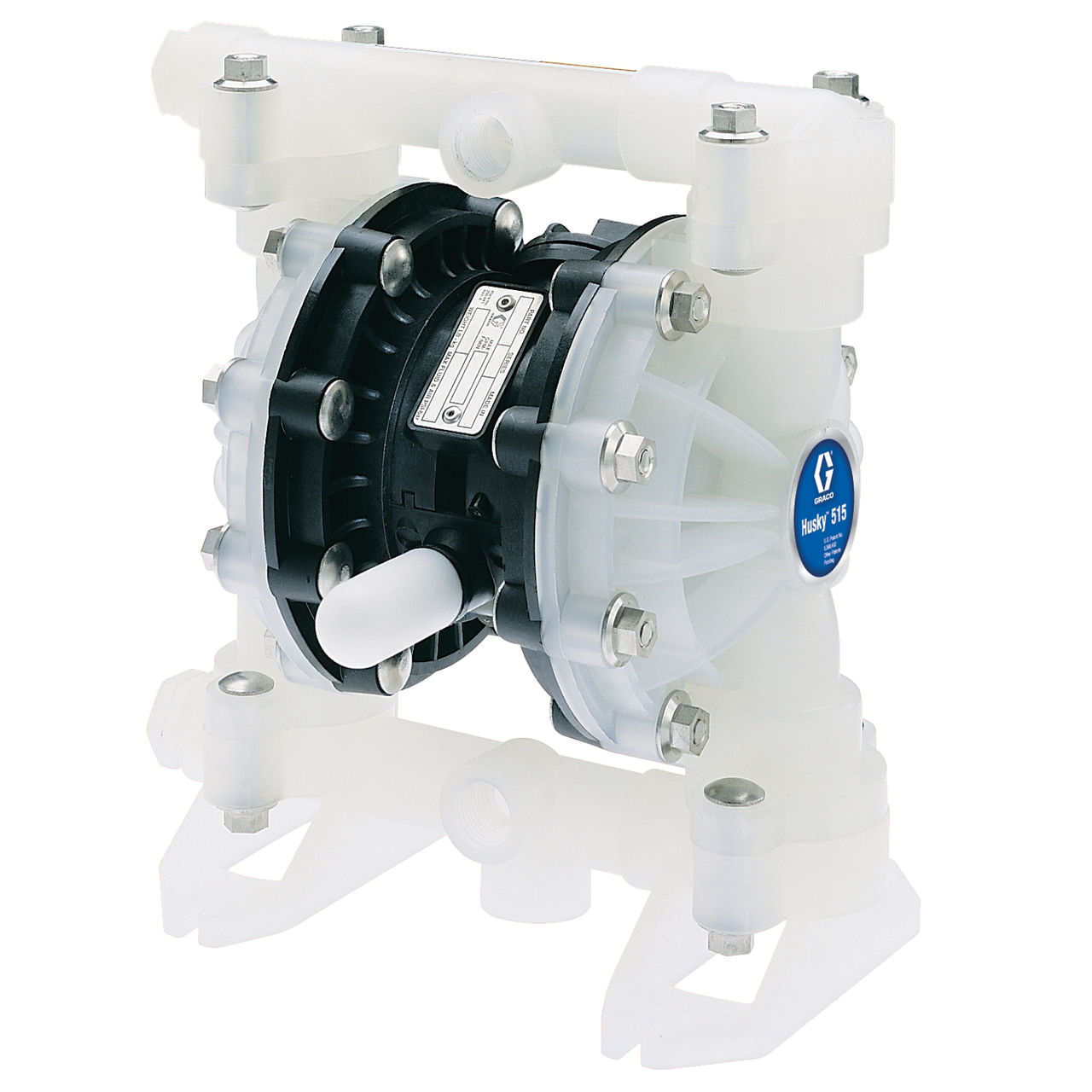

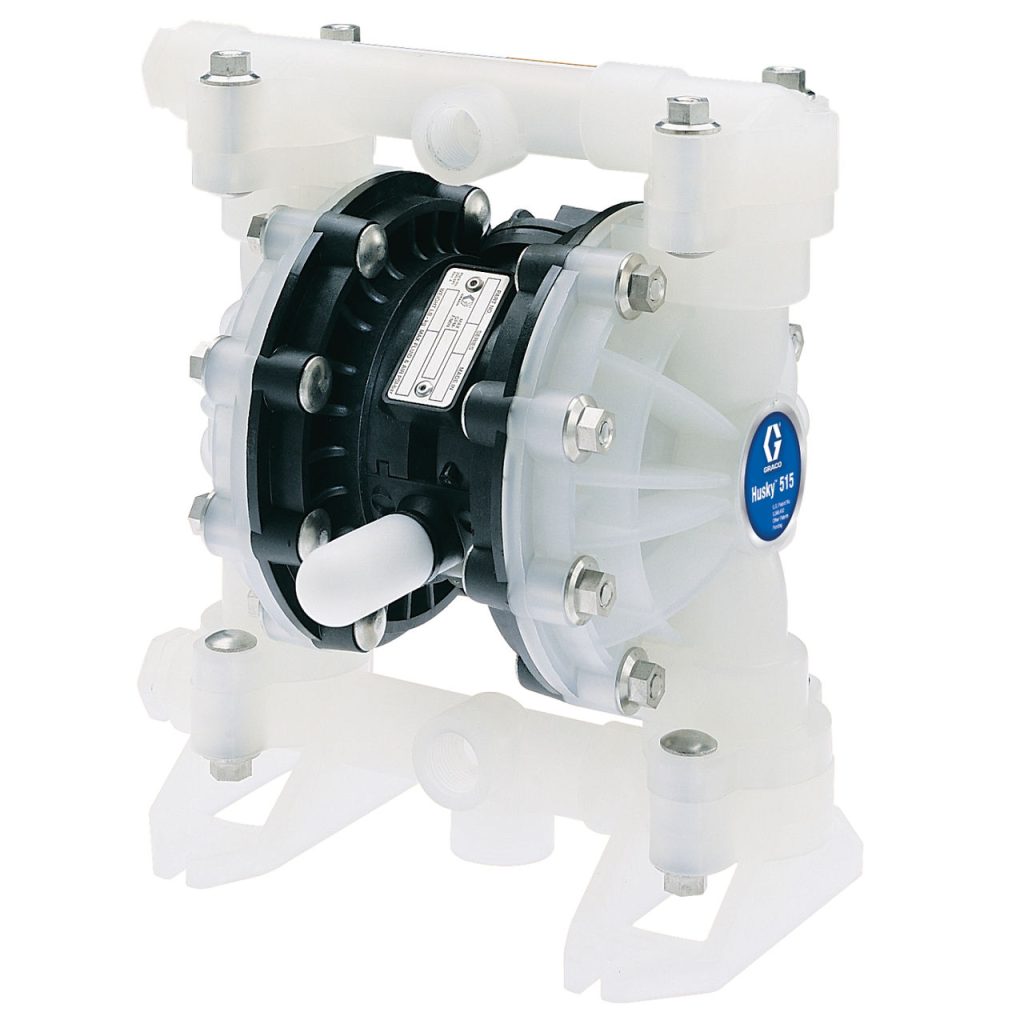

Graco Husky 515 PP 13 mm NPT Standard Pump, PP Centre Section, PP Seats, PTFE Balls & PTFE Diaphragm

SKU: D52-911
$1,489.23 $1,361.00 (9% off)

Exclusive of GST. Shipping calculated at checkout.

In Stock

Details

The Graco Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

Built for industrial applications, the Graco Husky 515 Series pneumatic diaphragm pump delivers reliable performance with a compact, durable design.

Handles a wide range of fluids, including:
Antifreeze, Detergents, Resins, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Wastewater and Ink.

  • Application: Industrial

  • Type: Pneumatic Diaphragm Pump

  • Model: Husky

  • Series: 515

  • Power Source: Air (Compressor Required)

  • Standards Met: ATEX, CE



Graco Process Equipment Brochure

D52911

Features

  • Centre and end porting options.
  • No mechanical seals to cause fluid leaks or failures
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Easy-to-service air valve and ball checks
  • Operates on as little as 1.4 bar (0.14 MPa, 20 psi)
  • Split manifold option to pump multiple fluids without mixing
  • Delivery up to 56.7 lpm (15 gpm)
  • Easy-to-service air valve and ball checks
  • Reliable air valve for years of dependable performance

Performance

  • Maximum Air Pressure: 7 bar | 100 psi | 0.7 MPa

  • Maximum Fluid Pressure: 7 bar | 100 psi | 0.7 MPa

  • Maximum Flow Rate: 57 L/min

  • Maximum Cycle Rate: 400 cpm

  • Maximum Operating Temperature: 66°C

  • Minimum Operating Temperature: 4°C

  • Maximum Solid Size: 2.4 mm

Specifications

Materials

  • Wetted Material: Polypropylene, PTFE/EPDM

  • Ball Material: PTFE

  • Seat Material: Polypropylene

  • Centre Section Material: Polypropylene

  • Fluid Section Material: Polypropylene

  • Manifold O-Ring Material: PTFE

Connections

  • Air Inlet Size: 1/4″ NPT (Female)

  • Air Exhaust Port Size: 3/8″ NPT (Female)

  • Fluid Inlet Size: 1/2″ NPT (Female) | 12.7 mm

  • Fluid Outlet Size: 1/2″ NPT (Female) | 12.7 mm

  • Manifold Configuration: Centre Port

  • Connection Type: Threaded
