If you run maintenance crews, small civil teams or a painting business keen to expand into line marking, the Graco ES 500 delivers pro-grade results with minimal learning curve.
Plug in the batteries, dial your pressure and lay crisp, consistent lines – anywhere the job takes you.

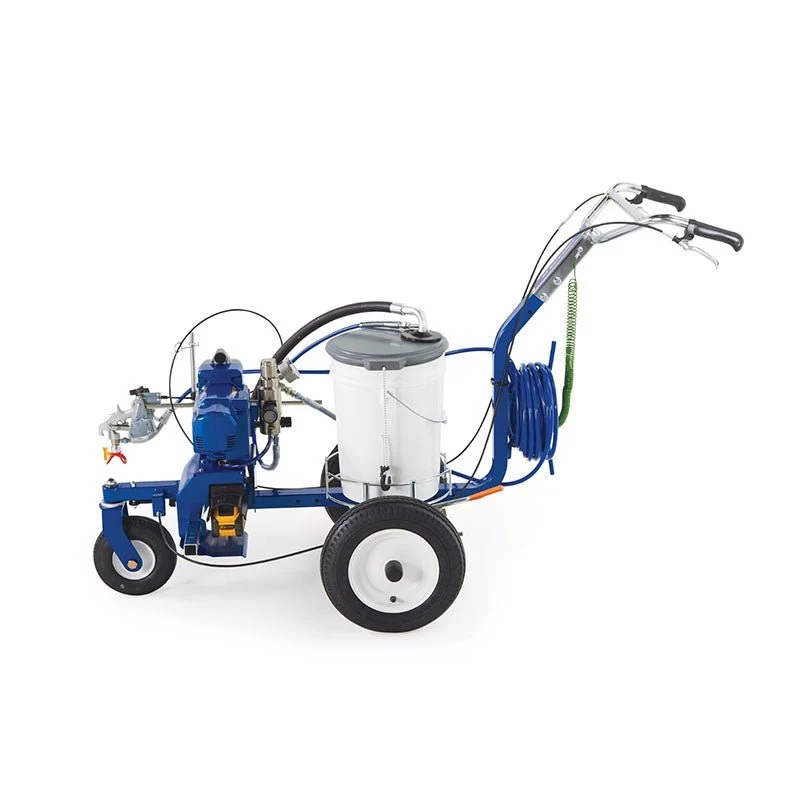

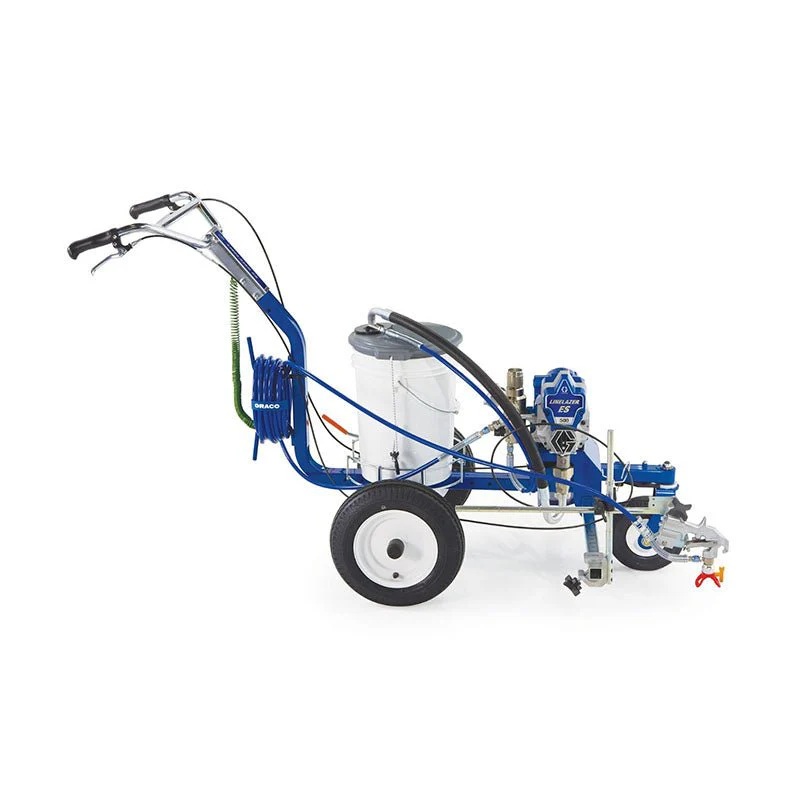

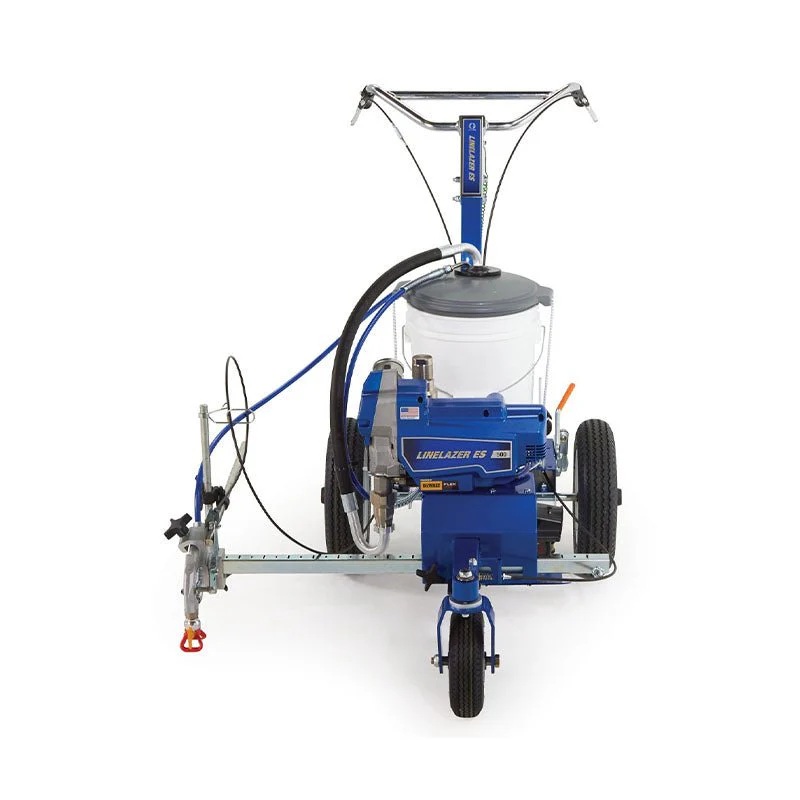

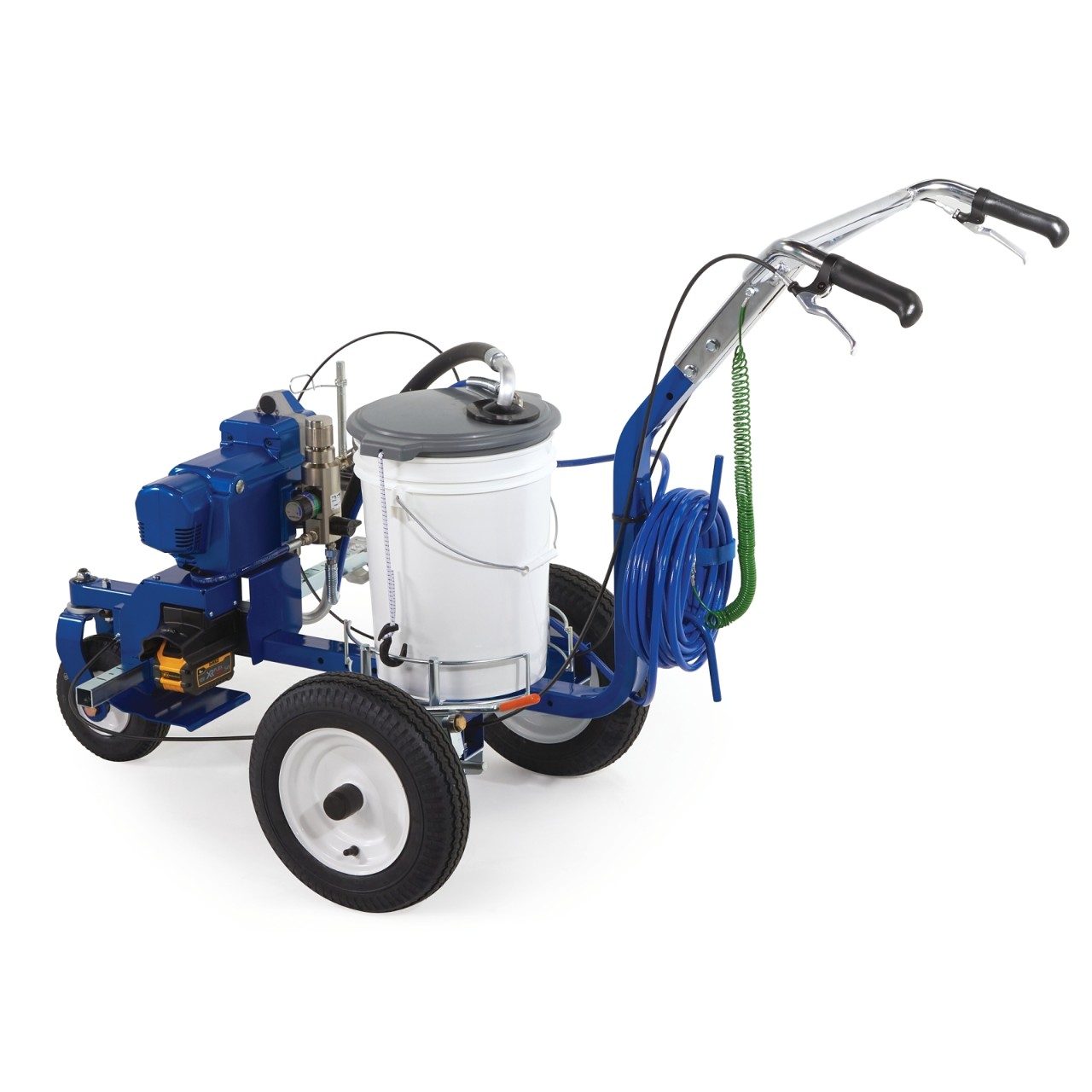

Quiet and cordless, the Graco LineLazer ES 500 brings professional line marking anywhere you can roll it – without petrol hassles.
Combine it with the Graco 390 PC Cordless Airless Sprayer for a quick and efficient solution to both stencilling and striping tasks.
| Included | Details |
|---|---|
| Silver Plus Airless Gun | Pre-fitted with RAC 5 Guard & LL5319 line tip |
| BlueMax™ II Hose | ¼ in × 7.5 m (25 ft) for high-flow reliability |
| 2 × 18V/54V 6.0Ah DeWalt FlexVolt | Plus fan-cooled fast charger |
| All filters | Factory installed – ready to spray out of the crate |
Battery Powered – No engine noise, vibration or fumes; ideal for indoor and outdoor use.

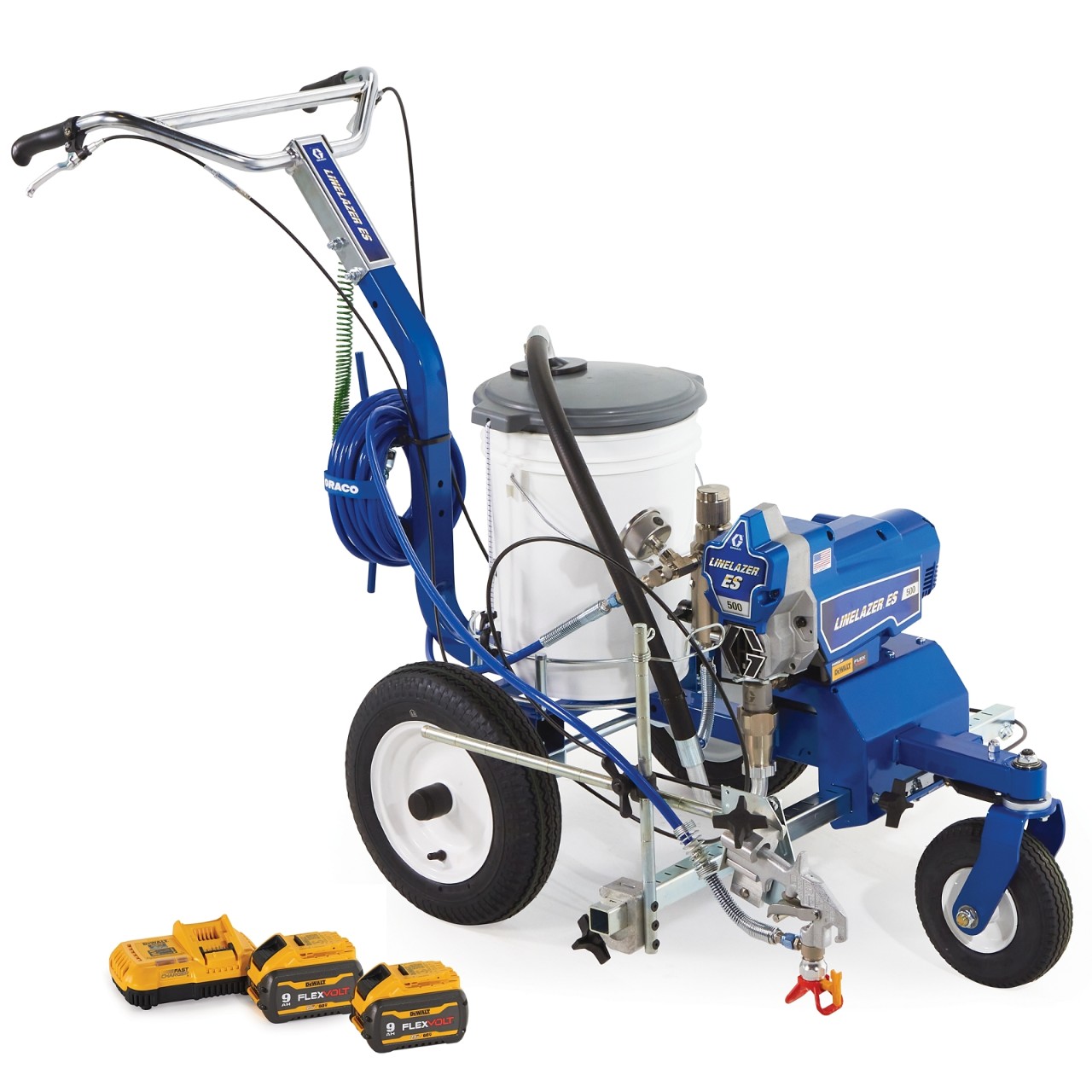

DEWALT FlexVolt® Technology – Includes 2 x 18V/54V 6.0Ah DeWalt FlexVolt batteries with a fan-cooled fast charger; recharge in under 60 minutes.
Long Runtime – Spray up to 37 litres (approx. 200+ standard car parks) on a full charge.
Quiet Operation – Perfect for noise-sensitive environments like warehouses, schools, and council sites.
Lightweight & Manoeuvrable – Compact design with front swivel wheel for easy striping along curbs and around tight corners.
EasyMark™ Gun Adjustment System – Simple, repeatable gun setup for clean, straight lines.
Endurance™ Pump – Built to last 2X longer than competitors, with quick-access valve for easy cleaning.
ProConnect™ Pump System – No-tool pump replacement in minutes, minimising downtime on site.
Easy Out™ Filter – Inside-out filter design reduces tip clogs and improves spray performance.
Compatible with Existing DEWALT 54V Batteries – These batteries are fully compatible with other DEWALT FlexVolt tools (like the Graco 390 PC Cordless), which makes them a great fit for the NZ trade market.
Perfect Pairing – Combine with the Graco 390 PC Cordless for seamless stencilling and striping.
Max Output: 3.1 L / min
Max Tip Size: 0.027 in (single gun)
Pressure Range: 500 – 3300 psi
Weight (ready-to-stripe): 57 kg
