Static Mixer Nozzles – 3 Sizes (185mm, 293mm, 420mm)

Get reliable performance and consistent mixing with Infinity Bond Static Mixers, a high-quality, USA-made solution for blending epoxies, polyurethanes, silicones and other two-part adhesives.

Designed to deliver clean, even dispensing, these disposable static mixer nozzles are built from tough polypropylene housings and high-strength polyacetal elements. Whether you’re using manual cartridge guns or meter mix systems, Infinity Bond mixers are compatible with a range of ratios and available in a range of sizes to suit your application.

These mixers are a cost-effective alternative to Nordson, TAH, Sulzer and 3M — with NZ-wide delivery and competitive pricing when you buy from Strouds.

Available Variants:

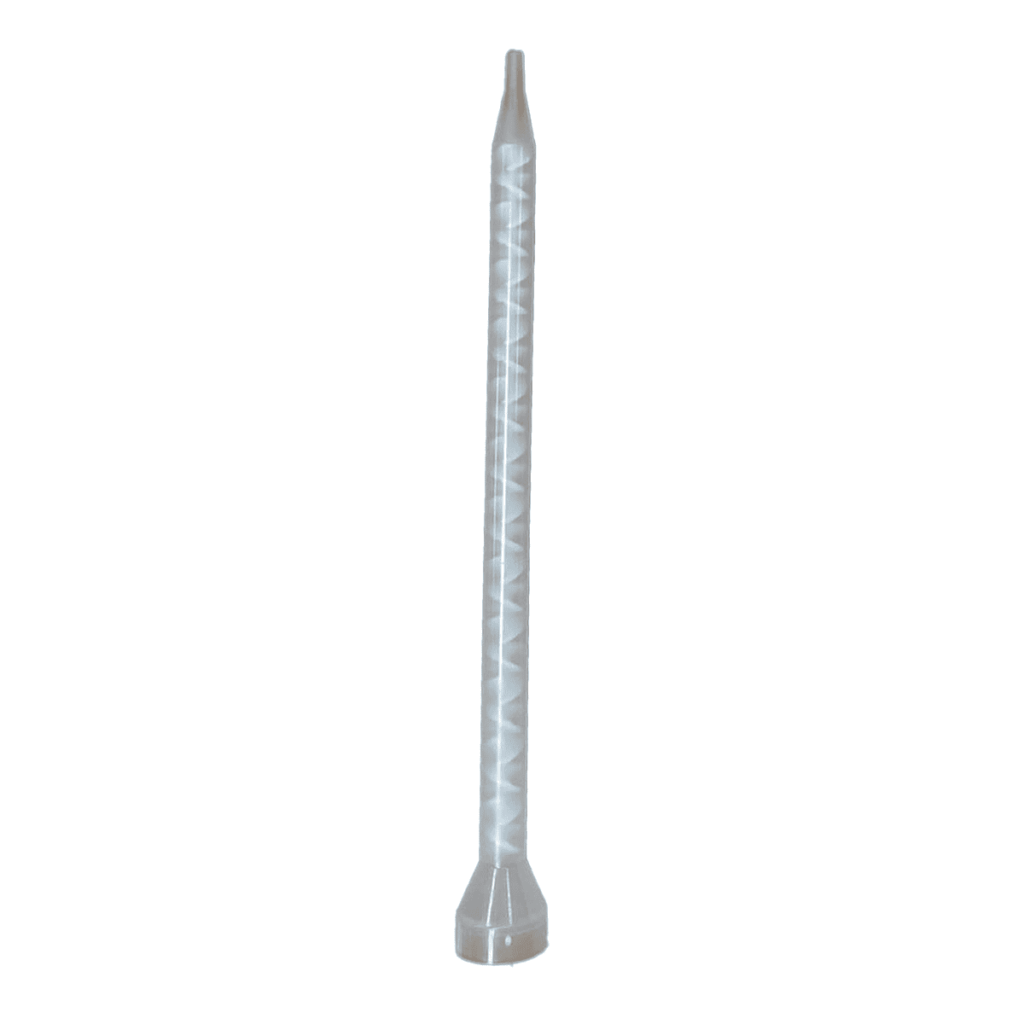

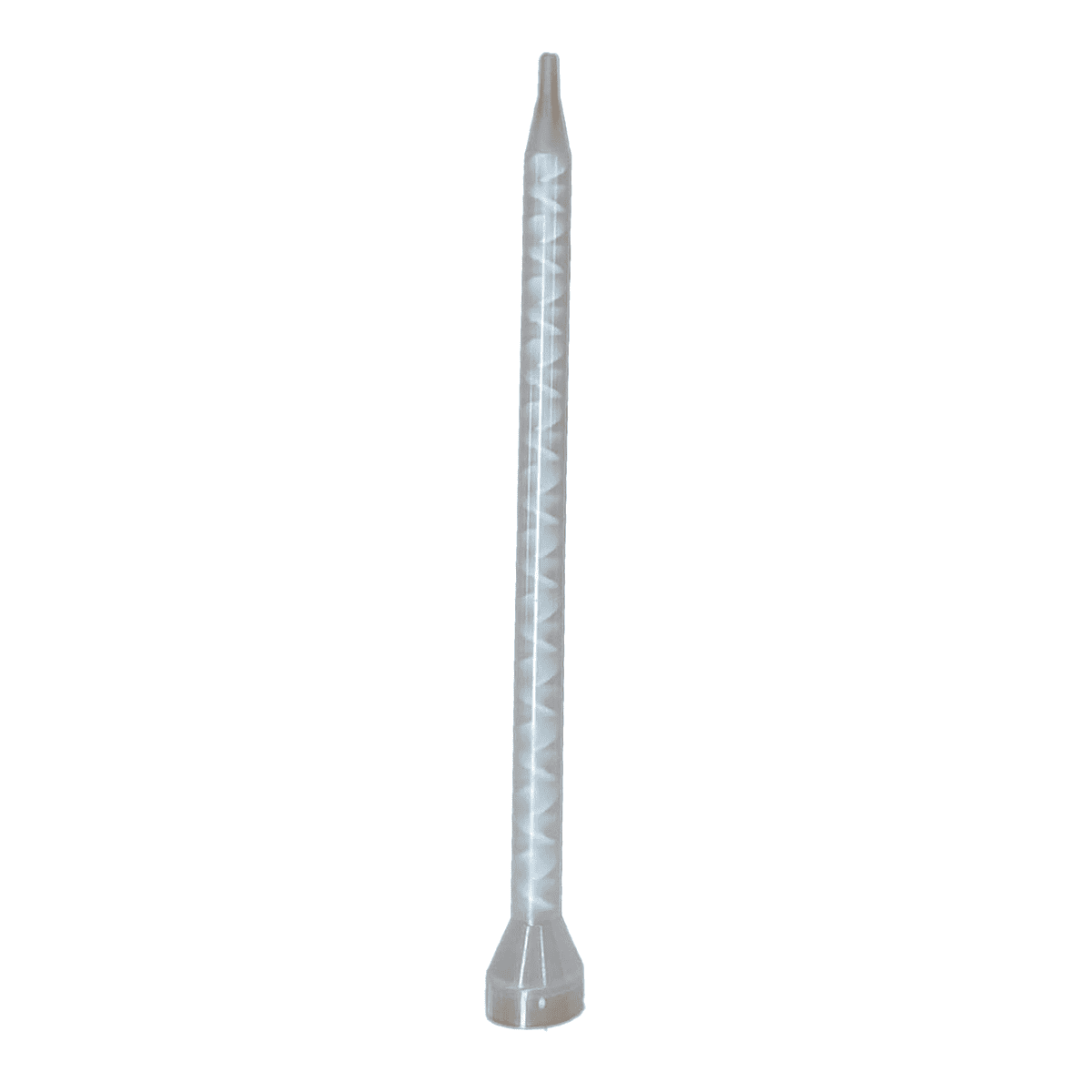

IB160624 – 24 Element x 185mm, Slip Luer Tip
A versatile mixer for precise application.

• Comparable to: TAH 160-624, Nordson 7700837

• Mixing Elements: 24

• Inner Diameter: ~6.4mm

• Outer Diameter: ~9.75mm

• Length: ~185mm (7.3″)

• Connection: Bell

• Tip Type: Slip Luer – can attach needle or taper tip for fine dispensing

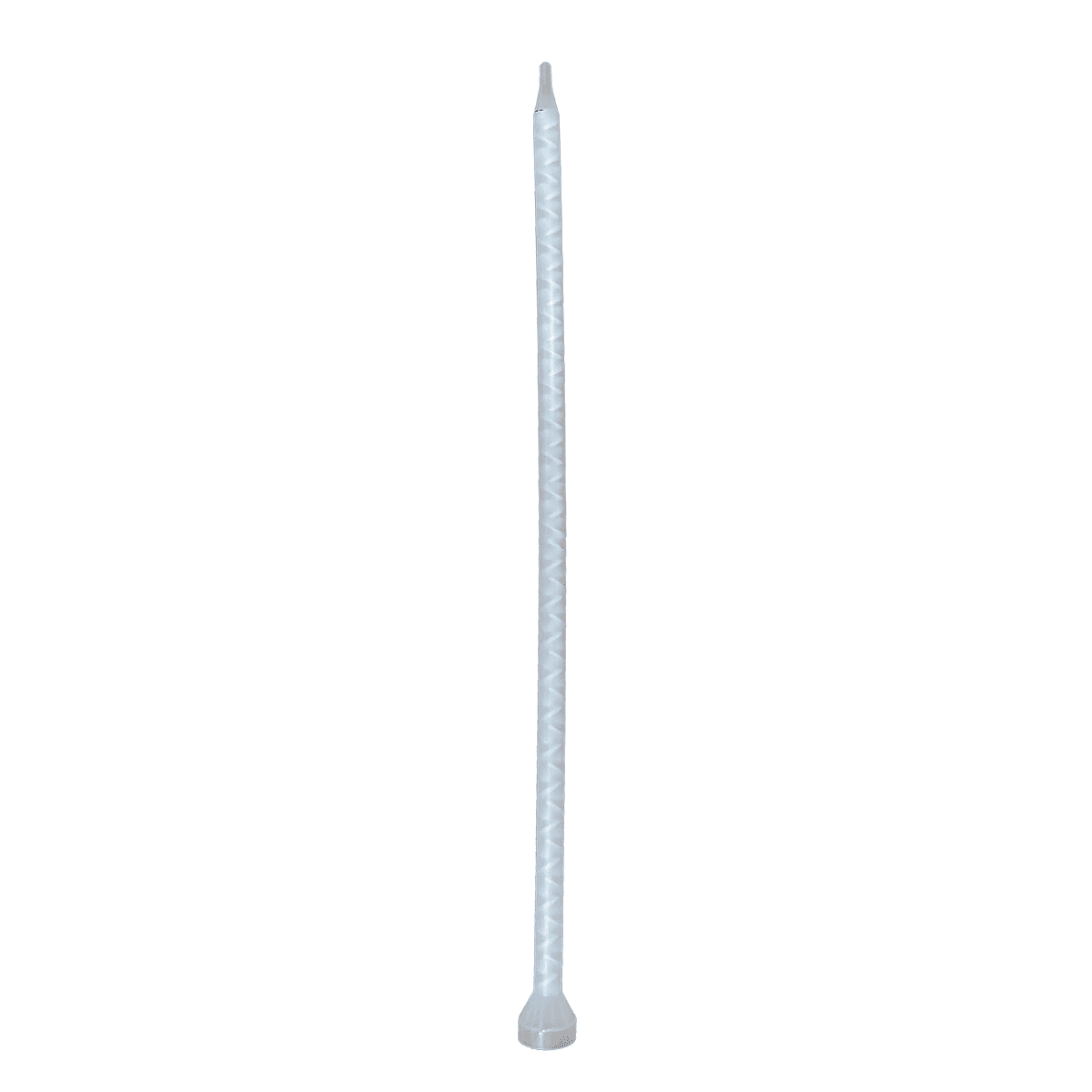

IB161224 – 24 Element x 293mm, Stepped Tip
Ideal for lower viscosity materials and meter mix machines.

• Comparable to: TAH 161-224, Nordson 7701010

• Mixing Elements: 24

• Inner Diameter: ~13mm

• Outer Diameter: ~16mm

• Length: ~293mm (11.55″)

• Connection: Bell

• Tip Type: Stepped

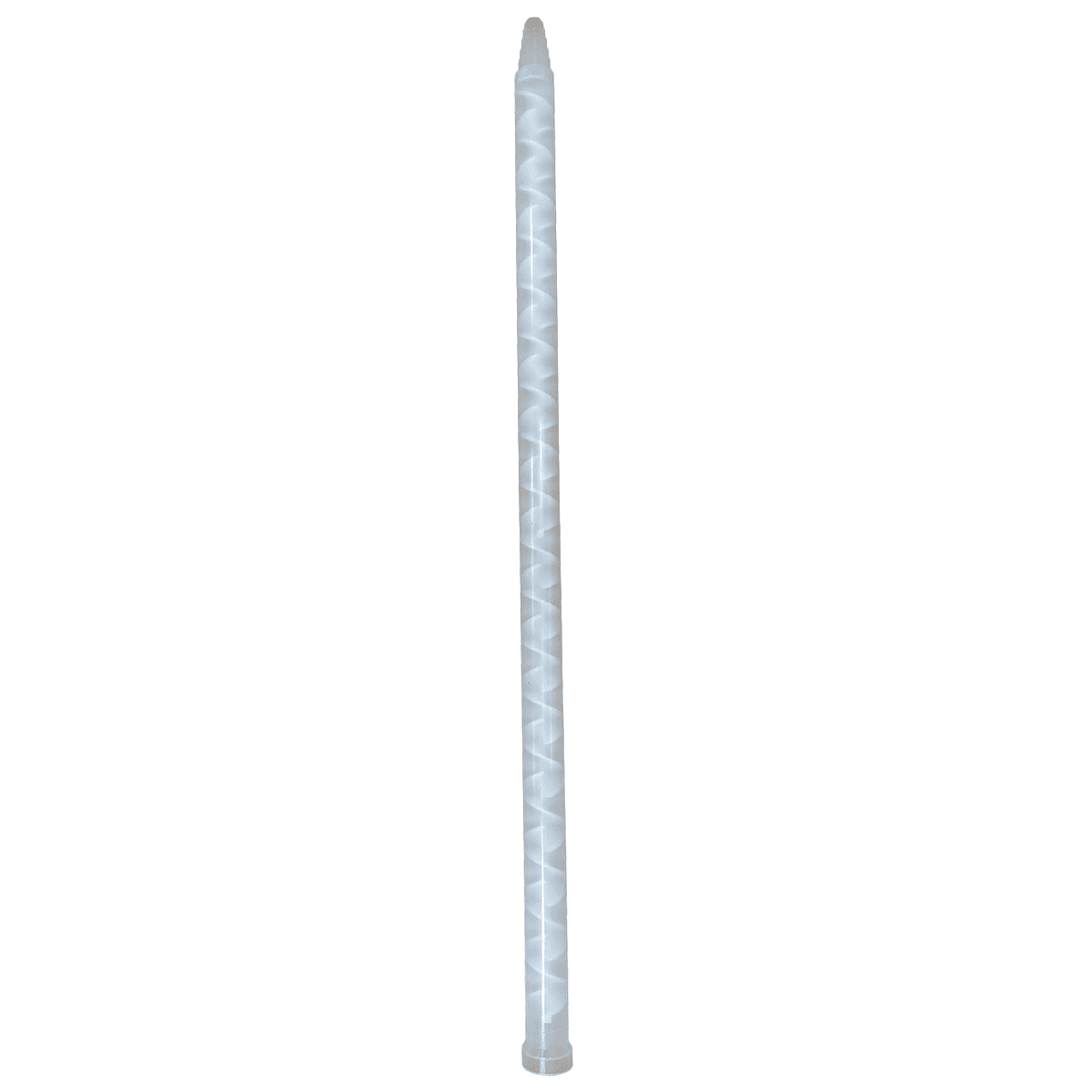

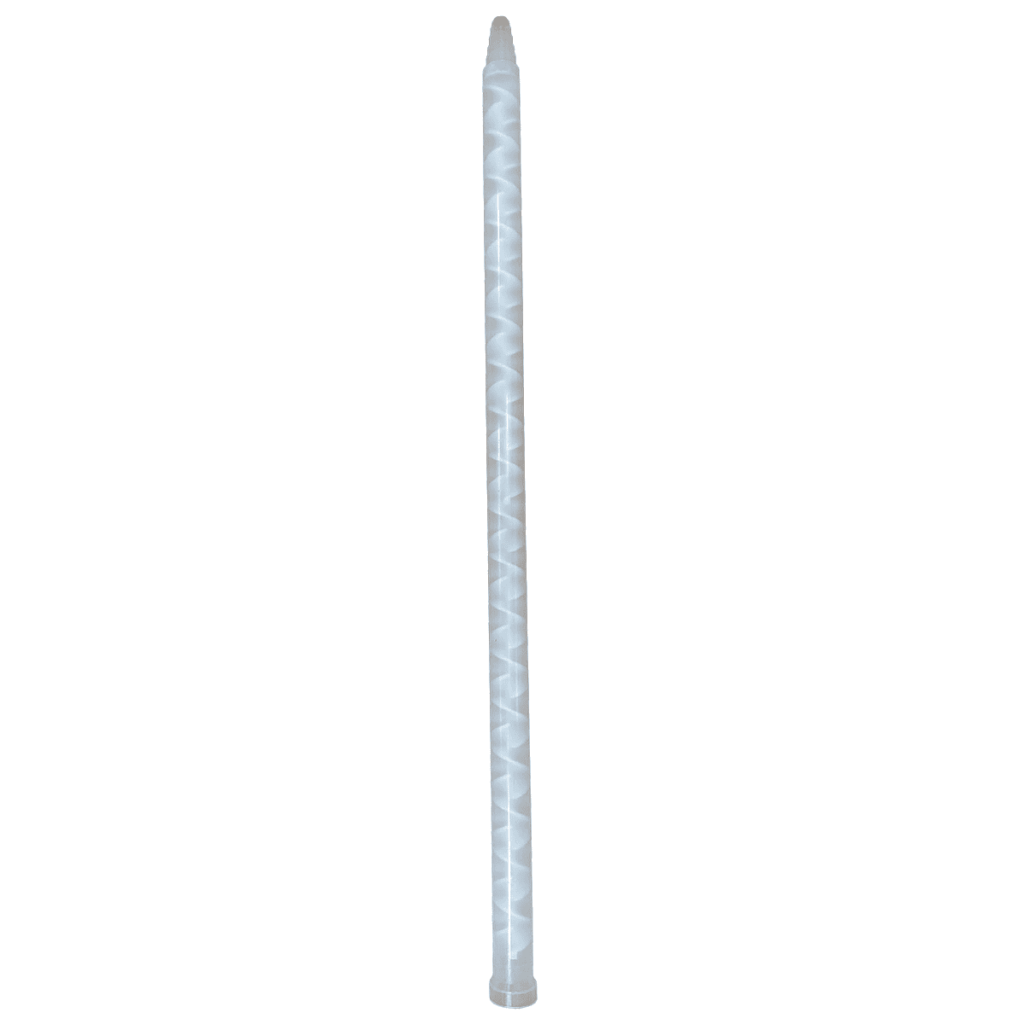

IB161236 – 36 Element x 420mm, Stepped Tip
Longer mixer for higher volume applications and thorough blending.

• Comparable to: TAH 161-236, Nordson 7701038

• Mixing Elements: 36

• Inner Diameter: ~13mm

• Outer Diameter: ~16.7mm

• Length: ~420mm (16.55″)

• Connection: Bell

• Tip Type: Stepped
