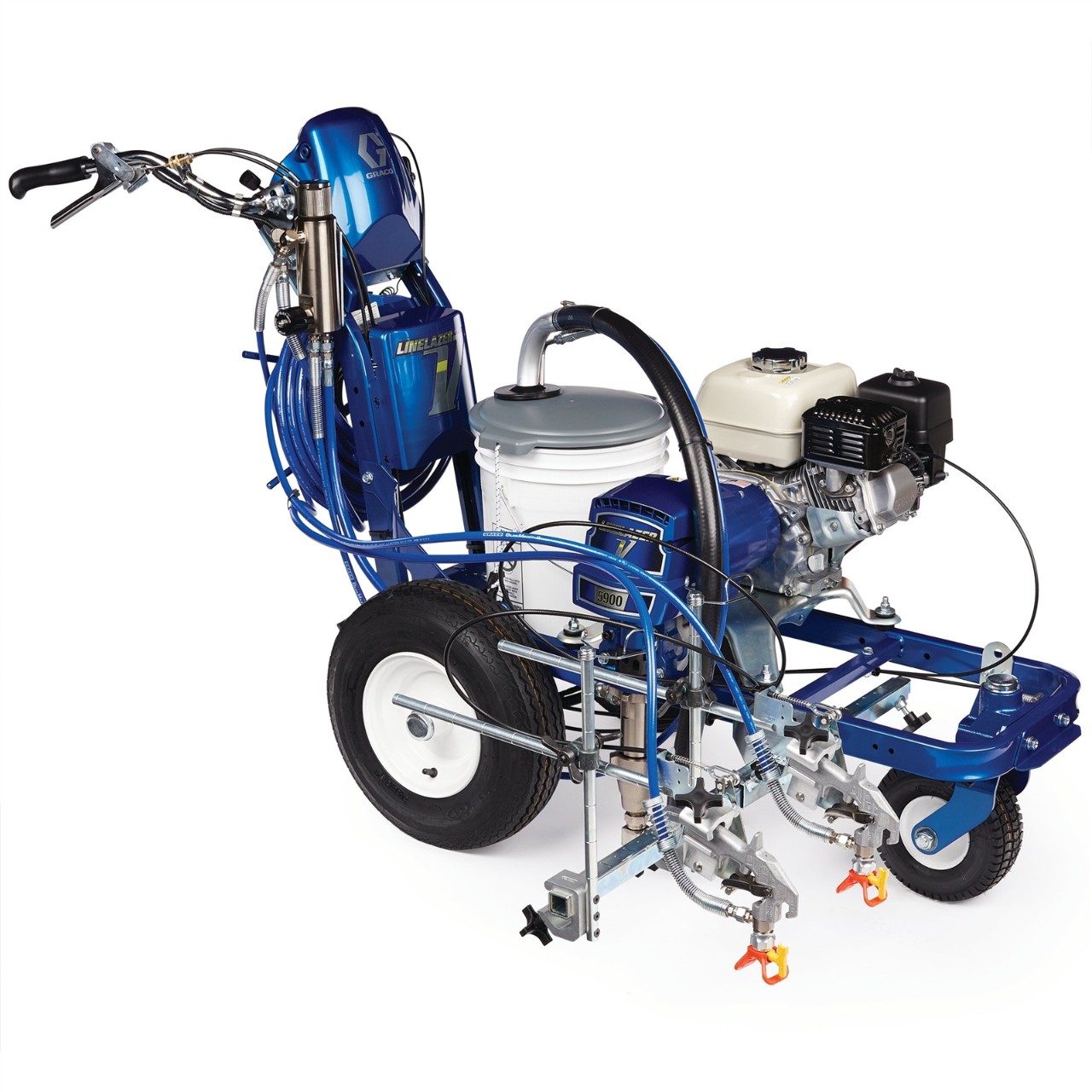

When you need reliable 1- or 2-gun performance with extra muscle, the Graco LineLazer V 5900 Standard Series delivers.
Designed for contractors tackling medium- to large-scale line-marking jobs, this walk-behind airless line striper produces clean, consistent lines on pavement or turf.
Built with Graco’s legendary Endurance Chromex Pump and a rugged Honda GX160 engine, it’s engineered for daily use in tough conditions.
Perfect for councils, contractors and facility managers who need dependable two-gun striping capability.
Built for consistent results, whether marking carparks, sports field or roadways.
Minimal maintenance downtime thanks to Graco’s proven pump technology.
LiveLook Display with SmartControl – View striping data, pressure and performance at a glance. The integrated J-Log System tracks job data and allows easy USB downloads for proof-of-job reporting.
Honda GX160 Engine – Delivers easy-start reliability and long-lasting power, with an oil-alert system to prevent damage from low levels.
EasyMark Gun Adjustment System – Simple alignment for perfect lines every time. Two-gun capability with the QuikSelect Gun Selector for quick switch between solid and skip lines.
EZ Align Wheel System – Fast, accurate wheel alignment without special tools for consistent tracking.
DualComfort Handlebar System – Adjustable handlebar height for operator comfort and control.
Endurance Chromex Pump – Long-life pump design proven to withstand the most demanding road-marking materials—four times harder than standard chrome.
Easy Out Pump Filter – Reduces tip clogs and mess with its inside-out maintenance design.
| Specification | Details |
|---|---|
| Model | LineLazer V 5900 Standard Series (17H455) |
| Power Source | Petrol – Honda® GX160 Engine (5 HP / 3.73 kW) |
| Pump Type | Endurance Chromex |
| Max Working Pressure | 3300 psi (227 bar) |
| Max Flow Rate | 1.6 gpm (6 L/min) |
| Max Tip Size | 0.029 in (0.74 mm) |
| Gun Activation | 2 Manual Guns (Flex Plus) |
| Compatible Materials | Road-marking paint |
| Compatible Surfaces | Pavement and turf |
| Fuel Tank Capacity | 3.6 L (0.95 gal) |
| Dimensions (L × W × H) | 1733 × 870 × 1130 mm |
| Weight | 113 kg (250 lb) |
| Sound Pressure Level | 87 dB(A) |
| Included Accessories | 2 × Flex Plus Guns, RAC 5 Tips (319 & 421), RAC 5 Tip Guards, 3/8 in × 50 ft BlueMax II Airless Hose, 3/8 in × 3 ft Whip Hose, 4 oz TSL Lubricant |
