We’re the NZ distributor for Graco Reactor systems for spray foam and polyurea applications.

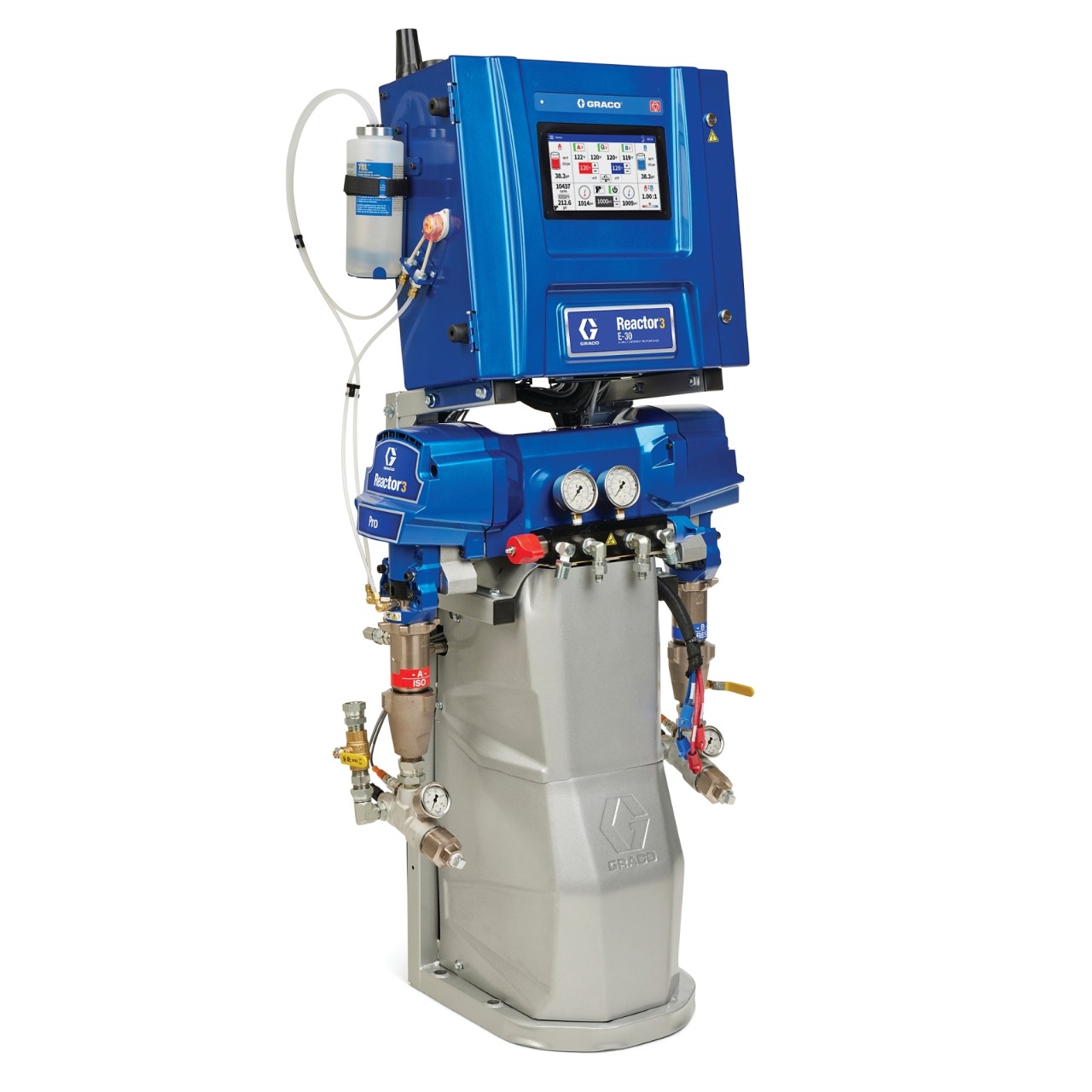

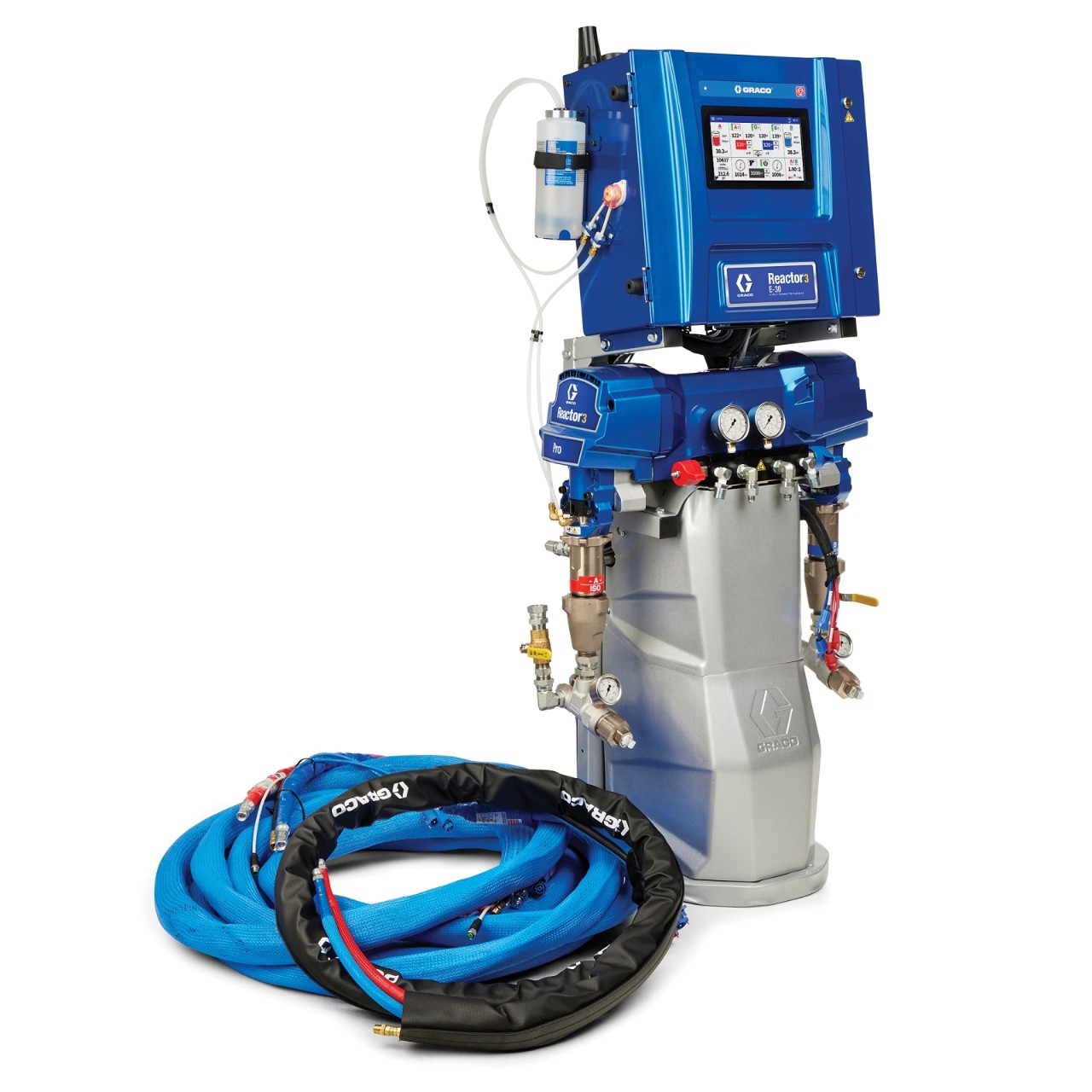

The Graco Reactor 3 E-30 Pro is built for high-output performance in demanding environments, delivering consistent results with advanced control over pressure, heat and flow –Â from drum to gun.
With smart connectivity, touchscreen operation and proven Graco reliability, it’s a solid choice for industrial contractors who need efficiency and precision on every job.

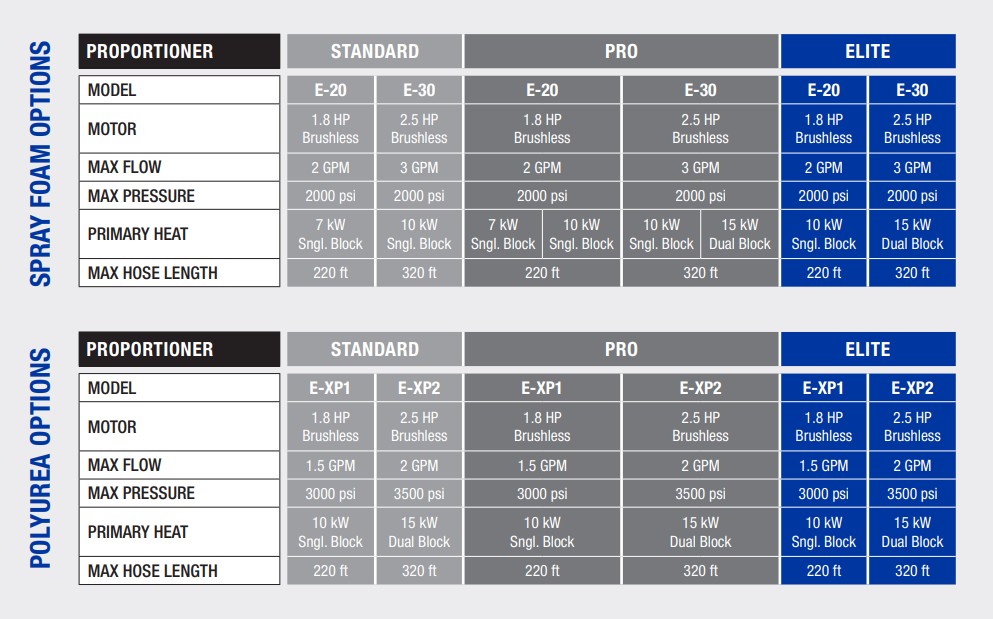

Contact us to discuss which Reactor system best suits your materials and production goals.
ESR333
Auto Pressure Balance
Automatically adjusts material temperatures to optimise fluid pressures and maximise yield.
Power Management
Select your preferred heater wattage to reduce power consumption based on job requirements.
Cellular Software Updates
Stay up to date with the latest Reactor software automatically — no manual updates required.
Touchscreen Advanced Display Module (ADM)
A large, intuitive touchscreen interface puts all spray operations on one easy-to-navigate screen.
Independent Hose Control
Set A and B material hoses to different temperatures for better pressure balance and yield optimisation.
Advanced Electric Design
Features a brushless motor for enhanced pressure and flow, independent hose heat control, easy voltage conversion with jumpers, and robust UL-listed connectors that are colour-coded and keyed for quick, error-proof assembly.
Reduced Size
The compact footprint creates more space in your rig while protecting flow meters and hose connections from damage.
Model: Reactor 3 E-30 Pro
Type: Proportioner Package
Series: Pro
Power Rating: 15 kW
Voltage: 200–240 VAC (single or 3-phase DELTA), 350–415 VAC (3-phase WYE)
Frequency: 50/60 Hz
Maximum Flow Rate: 13.5 kg/min
Maximum Fluid Temperature: 88°C
Maximum Spray Pressure: 14 MPa / 2000 psi / 140 bar
Hose Heating Type: Externally Heated
Standard Hose Length: 15 m (50 ft)
Transfer Pump: Not included
Dimensions (H x W x D): 1435 mm x 680 mm x 381 mm
