We’re the NZ distributor for Graco Reactor systems for spray foam applications.

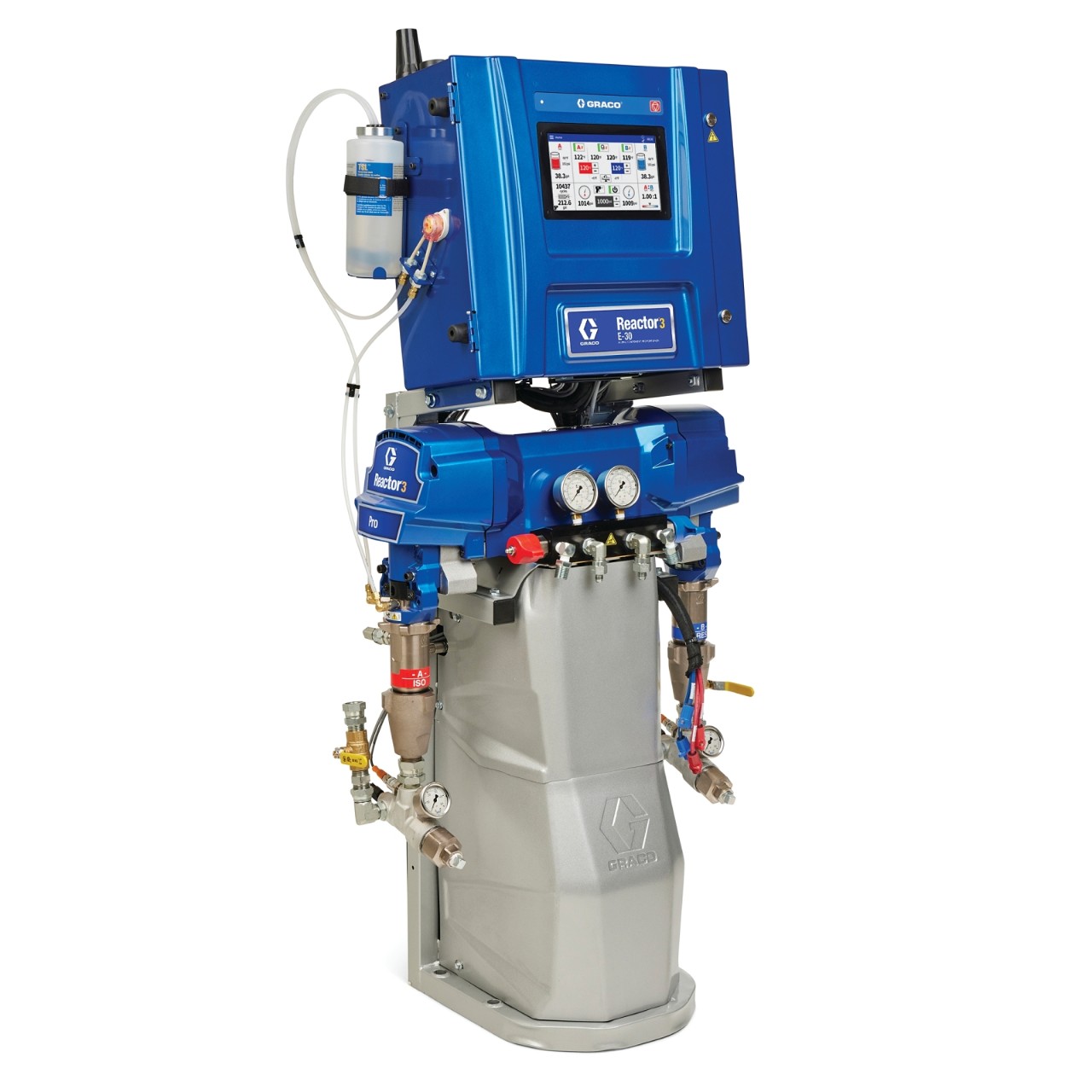

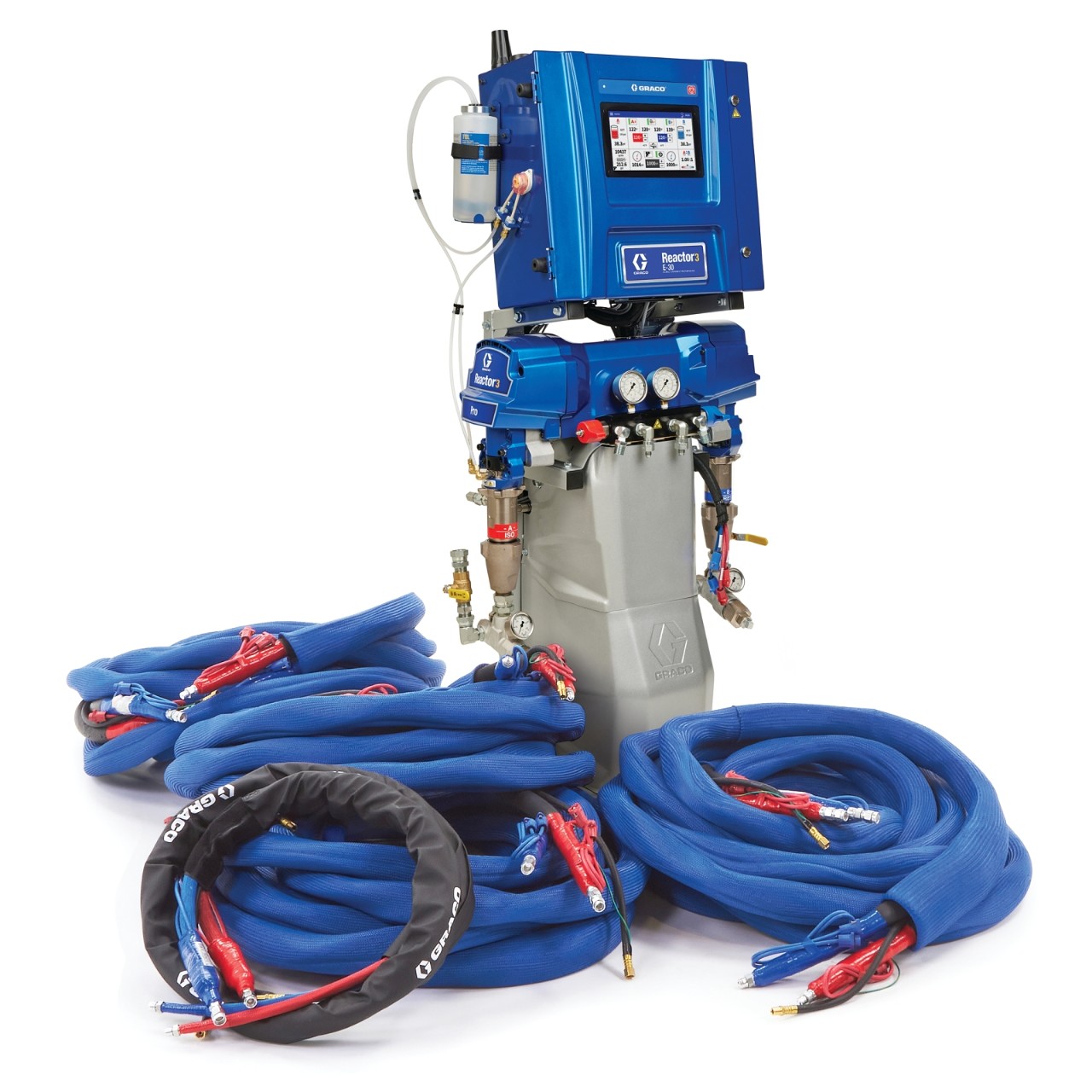

The Graco Reactor 3 E-30 Pro delivers reliable performance, precise control and high output for demanding industrial environments.
With connectivity from drum to gun, you can precisely control heat, pressure and material flow for spray applications.
Contact us to discuss which unit best matches your application and production needs.
EHR333
Auto Pressure Balance
Automatically adjusts temperatures to optimise fluid pressures and maximise yield.
Power Management
Select your desired heater wattage to reduce power consumption and better manage energy use.
Cellular Software Updates
Stay up to date with the latest Reactor software automatically — no manual updates required.
Touchscreen Advanced Display Module (ADM)
A large, intuitive touchscreen interface puts all spray operations on one screen for easy navigation and control.
Independent Hose Control
Set different temperatures for A and B materials to improve pressure balancing and maximise output.
Advanced Electric Design
Features a brushless motor for superior pressure and flow, updated control boards for independent hose heat, voltage jumpers for fast voltage changes, and colour-coded UL-listed electrical connectors for easy, error-free setup.
Reduced Size
Compact footprint creates more room in your rig and protects key components like flow meters and hose connections from damage.
Model: Reactor 3 E-30 Pro
Type: Proportioner Package
Maximum Flow Rate: 13.5 kg/min
Maximum Spray Pressure: 14 MPa / 140 bar / 2000 psi
Maximum Fluid Temperature: 88 °C
Hose Heating Type: External Heated
Hose Length: 200 ft
Power Rating: 15 kW
Voltage Options:
– 200–240 VAC, 1–ph
– 200–240 VAC, 3–ph DELTA
– 350–415 VAC, 3–ph WYE
Frequency: 50/60 Hz
Transfer Pump: Not included
Dimensions (W x D x H): 680 mm x 381 mm x 1435 mm (converted from in.)
Weight: 147 kg
