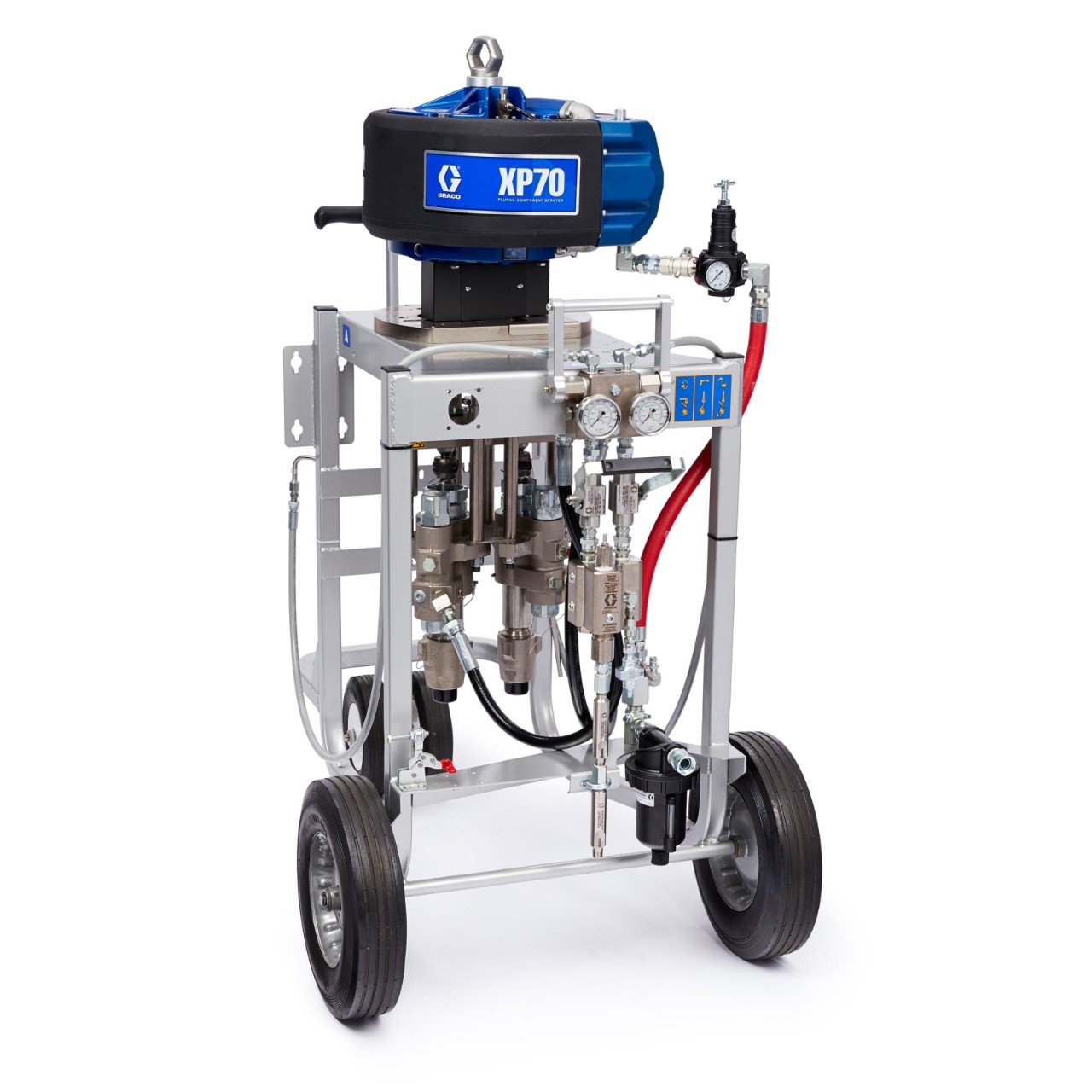

Graco XP70 Plural-Component Sprayer
Reliable, Efficient, and Easy Two-Component Spraying
Take the hassle out of spraying high-solid and 100% solid coatings. The Graco XP70 is engineered to pump, mix and spray two-component materials with precision – delivering superior results and reducing waste.
Why choose the XP70?
Cost-efficient operation: Its gravity-feed design can eliminate the need for expensive feed pumps.
Save time and materials: Minimise waste and solvent use by eliminating hand mixing and streamlining clean-up.
Flexible for your workflow: Choose from a wide range of mix ratios, pressures, and flow rates to suit your specific application.
Easily adjustable: If you change materials often, the XP70 makes it simple—just switch out one or two pump lowers to change the mix ratio.
Available mix ratios:
1:1, 1.5:1, 2:1, 2.5:1, 3:1, and 4:1
Ideal for industrial users needing consistent performance, lower operating costs and versatility across coating types.
General
Product Type: Plural-Component Sprayer
Series: XP70
Component Type: Plural-Component
Material Applications: Coatings, Paints, Primers
Includes: XTR704 Spray Gun, Fluid Hose, Whip Hose, Recirculation Hose
Sound Pressure Level: 86 dB(A)
Performance
Max Spray Pressure: 500 bar (50 MPa)
Max Working Pressure: 500 bar (50 MPa)
Max Air Inlet Pressure: 12.07 bar
Max Air Consumption: 75 SCFM per GPM at 100 psi
Max Fluid Temperature: 71 °C
Max Operating Temperature: 54 °C
Max Fluid Viscosity: 20,000 cP
Min Fluid Viscosity: 200 cP
Cycle Rate (Max): 40 CPM
Mix Accuracy: ±5%
Mix Ratio: Fixed ratio system (see product selection for ratios)
Connections
Air Inlet Size: 3/4″ (Female)
Fluid Inlet Size: 1-1/4″ (Male)
Fluid Outlet Thread: Female
Dimensions & Weight
Height: 157.5 cm
Width: 88.9 cm
Depth: 132.1 cm
Shipping Weight: 237.68 kg
Volume: 2.867 m³
Max Hose Length: 91.4 m
